1 APOLLO 76-105-27 SS BALL VALVE

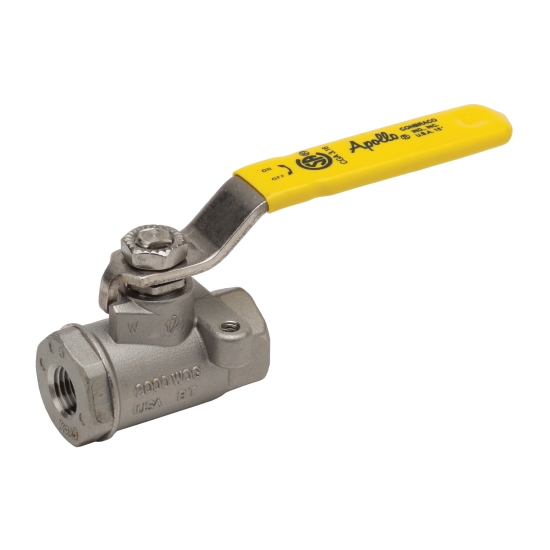

Apollo Valves 76-100 7610527A Ball Valve, 1 IN, FNPT, Stainless Steel, 150 PSI Steam, 2000 PSI CWP
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: VLV BA SS 7610527A 1
- MPN: 7610527A
- UPC: 00670750164163
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Apollo Valves 76-100 2-Piece Straight Standard Port Ball Valve, Fire Safe: Yes, 1 IN Nominal, FNPT Connection, 150 PSI Steam, 2000 PSI CWP, -50 - 450 DEG F, Stainless Steel Body, Locking Lever Handle Operator, Stainless Steel Handle, Stainless Steel Stem, PTFE Seat, PTFE Seal, Material Standard: ASTM A351 CF8M, Finish/Color: Silver, Industry Standards: AIS, BABA Act Compliant, BAA Compliant, CRN, Meets NACE MR0175 (2000) and MR0103 (2012), NSF/ANSI/CAN 61 Section 8, Annex G, NSF/ANSI 372, NSF Certified, Other Physical Dimension: 3.34 IN Inlet To Outlet Length, 2.16 IN Top To Inlet Center, Additional Specifications: Includes: Mounting Pad
| Brand Name | : | Apollo Valves |
| Fire Safe | : | Yes |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Straight, Standard Port |
| Series/Model | : | 76-100 |
| Nominal Size | : | 1 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 150 PSI Steam, 2000 PSI CWP |
| Temperature Rating | : | -50 - 450 DEG F |
| Body Material | : | Stainless Steel |
| Operator Type | : | Locking Lever Handle |
| Handle Material | : | Stainless Steel |
| Stem Material | : | Stainless Steel |
| Seat Material | : | PTFE |
| Seal Material | : | PTFE |
| Material Standard | : | ASTM A351 CF8M |
| Finish/Color | : | Silver |
| Industry Standards | : | AIS, BABA Act Compliant, BAA Compliant, CRN, Meets NACE MR0175 (2000) and MR0103 (2012), NSF/ANSI/CAN 61 Section 8, Annex G, NSF/ANSI 372, NSF Certified |
| Other Physical Dimension | : | 3.34 IN Inlet To Outlet Length, 2.16 IN Top To Inlet Center |
| Additional Specifications | : | Includes: Mounting Pad |
- Investment cast components
- Reinforced seats
- Mounting pad for easy actuator-mounting
- Blowout-proof stem design
- Adjustable packing gland
- Stainless steel lever and nut
