1-1/2 x 3/4 CS PRESS TEE GAS HBNR

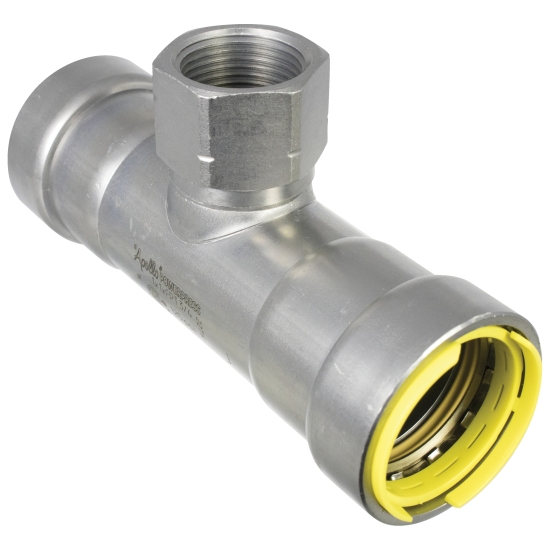

Apollo Valves PowerPress® 4712G PWR7481903 Tee, 1-1/2 X 1-1/2 X 3/4 IN, Press X Press X FPT, Carbon Steel
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: CS PRESS TEE PXPXFPT 1-1/2X3/4
- MPN: PWR7481903
- UPC: 08711985369526
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Apollo PowerPress® 4712G is a T-piece for natural gas applications, designed for thick wall steel pipe. By using Apollo PowerPress® gas system installation times are reduced significantly and a clean working environment is assured. The range consists of DW profile press fittings and valves in sizes 1/2 IN up to and including 2 IN.
Apollo Valves PowerPress® 4712G Tee, 1-1/2 X 1-1/2 X 3/4 IN Nominal, Press X Press X FPT Connection, 0.13 IN Wall Thickness, Carbon Steel, Finish/Color: Gray/Zinc Nickel-Plated, 1.9 X 1.05 X 1.9 IN Outside Diameter, 7 IN Length, -40 - 194 DEG F, Industry Standards: CRN, CSA Certified, ICC Certified, IAPMO Certified, Additional Specifications: Includes: HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator
| Connection Type | : | Press X Press X FPT |
| Finish/Color | : | Gray/Zinc Nickel-Plated |
| Item Name | : | Tee |
| Length | : | 7 IN |
| Nominal Size | : | 1-1/2 X 1-1/2 X 3/4 IN |
| Series/Model | : | 4712G |
| Temperature Rating | : | -40 - 194 DEG F |
| Wall Thickness | : | 0.13 IN |
| Additional Specifications | : | Includes: HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator |
| Industry Standards | : | CRN, CSA Certified, ICC Certified, IAPMO Certified |
| Material | : | Carbon Steel |
| Outside Diameter | : | 1.9 X 1.05 X 1.9 IN |
| Sub Brand | : | PowerPress® |
- Outstanding corrosion-resistance due to ZnNi-coating
- Clear identification of materials and dimensions
- Visu control ring and leak before pressed function
