1-1/2 CS PRESS ST 90 ELL GAS HBNR

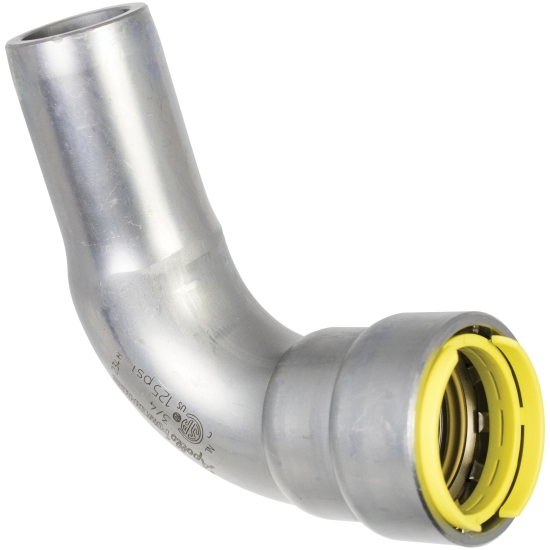

Apollo Valves PowerPress® 407-2G PWR7481518 90 DEG Street Elbow, 1-1/2 IN, Press X Fitting, Carbon Steel
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: CS PRESS ELL 90 PXFTG 1-1/2
- MPN: PWR7481518
- UPC: 08711985369137
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Apollo PowerPress® 407-2G is a 90 DEG bend for gas applications designed for thick wall steel pipe. By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW profile press fittings and valves in sizes 1/2 IN up to and including 2 IN.
Apollo Valves PowerPress® 407-2G 90 DEG Street Elbow, 1-1/2 IN Nominal, Press X Fitting Connection, 0.13 IN Wall Thickness, Carbon Steel, Finish/Color: Gray/Zinc Nickel-Plated, 1.9 IN Outside Diameter, -40 - 194 DEG F, Industry Standards: CRN, CSA Certified, ICC Certified, IAPMO Certified, Additional Specifications: Includes: HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator
| Connection Type | : | Press X Fitting |
| Item Name | : | 90 DEG Street Elbow |
| Material | : | Carbon Steel |
| Nominal Size | : | 1-1/2 IN |
| Outside Diameter | : | 1.9 IN |
| Series/Model | : | 407-2G |
| Temperature Rating | : | -40 - 194 DEG F |
| Wall Thickness | : | 0.13 IN |
| Additional Specifications | : | Includes: HNBR Sealing Elements, Buffer Stud, Capped and Connection Indicator |
| Finish/Color | : | Gray/Zinc Nickel-Plated |
| Industry Standards | : | CRN, CSA Certified, ICC Certified, IAPMO Certified |
| Sub Brand | : | PowerPress® |
- Outstanding corrosion-resistance due to ZnNi-coating
- Clear identification of materials and dimensions
- Visu control ring and leak before pressed function
