2 70-208-04 APOLLO BRZ CXC BALL VLV WITH

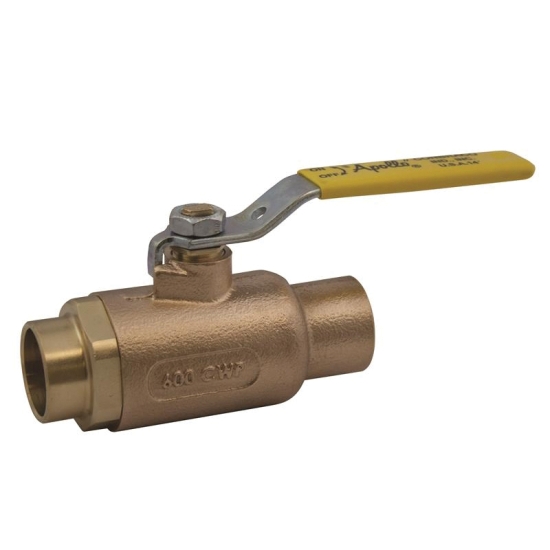

Apollo Valves Series 70 70-208-04 Ball Valve With 2-1/4 IN Stem Extension, 2 IN, Solder, 600 PSI, Bronze Body
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 2007020804BV
- MPN: 70-208-04
- UPC: 670750666520
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Apollo® 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo's South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo Valves Ball Valve With 2-1/4 IN Stem Extension, Type: 2-Piece, Ball Valve With 2-1/4 IN Stem Extension, Series/Model: Series 70, 2 IN Nominal, Connection Type: Solder, 600 PSI, -20 To 500 DEG F, Bronze Body, Brass Stem, MPTFE Packing, RPTFE Seat, PTFE Seal, Material Standard: Body: ASTM B584, C84400, Retainer: ASTM B584, C84400, Ball: ASTM B16, C36000, Stem And Gland Nut: ASTM B16, Industry Standards: Build America Buy America (BABA) Act, Buy American Act (BAA), CRN Approved, ARRA Compliant, 6.33 IN Width, Other Physical Dimension: 5.44 IN Inlet Center To Top Of Handle, 7-3/4 IN Handle Length, 6.080 LB Weight
| Item Name | : | Ball Valve With 2-1/4 IN Stem Extension |
| Type | : | 2-Piece |
| Series/Model | : | Series 70 |
| Nominal Size | : | 2 IN |
| Connection Type | : | Solder |
| Pressure Rating | : | 600 PSI |
| Temperature Rating | : | -20 To 500 DEG F |
| Body Material | : | Bronze |
| Stem Material | : | Brass |
| Packing Material | : | MPTFE |
| Seat Material | : | RPTFE |
| Seal Material | : | PTFE |
| Material Standard | : | Body: ASTM B584, C84400, Retainer: ASTM B584, C84400, Ball: ASTM B16, C36000, Stem And Gland Nut: ASTM B16 |
| Industry Standards | : | Build America Buy America (BABA) Act, Buy American Act (BAA), CRN Approved, ARRA Compliant |
| Width | : | 6.33 IN |
| Other Physical Dimension | : | 5.44 IN Inlet Center To Top Of Handle, 7-3/4 IN Handle Length |
| Weight | : | 6.080 LB |
- Premium materials and heavy-duty construction
- Adjustable stem packing gland
- Blowout-proof stem design
- RPTFE seats and MPTFE stem packing rings
- Chromium plated ball
- 100% factory tested
- Manufactured in the USA - ARRA compliant
