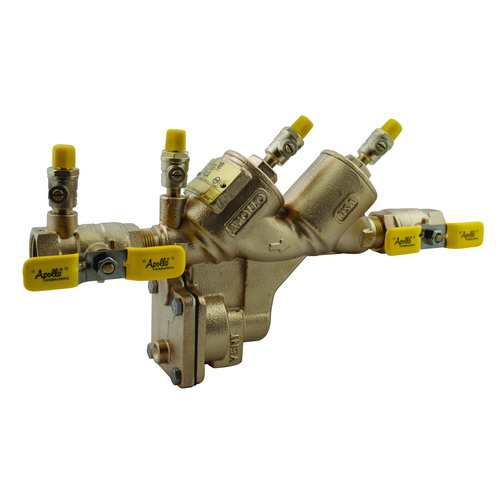

2 LEAD FREE BRZ REDUCED PRESSURE ZONE W/BALL VALVE

Backflow Preventer Reduced Pressure Zone Assembly With Ball Valve, Series/Model: Model RPLF4A, Nominal Size: 2 IN, Connection Type: SAE Threaded Test Cock, Pressure Rating: 175 PSI, Temperature Rating: 33 - 180 DEG F, Bronze Body Material, Standard Handle Operator Type, Handle Material: Stainless Steel, Trim Material: Chloramine-Resistant Silicone Seat Disc, Seal Material: Chloramine-Resistant EPDM O-Ring, Material Specification: Body: UNS C89836, Industry Standards: ASSE 1013, CSA B64.5 Certified, IAPMO Certified, AWWA C511, ISO 9001-2008 Registered, 20-1/8 IN Width, 11 IN Height, Lead Free: Yes, Other Physical Dimension: 5-7/8 IN Depth, 5 IN Inlet Center To Top Of Valve

The Apollo® model RPLF4A lead free reduced pressure backflow preventer a series provide maximum protection of the potable water supply due to back-siphonage or backpressure from substances that are hazardous to the potable water supply. The top accessed modular check valve cartridges provide captured springs, replaceable seats and reversible silicone seat discs. This made in America assembly features ball valve shutoffs with stainless steel handles and nuts as standard and carries the 5yr Apollo® factory warranty.

• Low pressure loss documented by independent approval agencies
• Easily removable modular check valve cartridge
• Captured stainless steel springs
• Ball valve shut-offs with stainless steel handles and nuts standard
• Top mounted test cocks for easy testing
• No special tools required
• Chloramine resistant elastomers
• Horizontal installation
• Bronze BV shut-offs, test cocks, glass-filled PPO check valve cartridges, stainless steel springs
• Modular relief valve
• For protection against backflow of health or non-health hazard fluids by either back-pressure or back-siphonage
