1 CS THRD STD PORT BALL VALVE

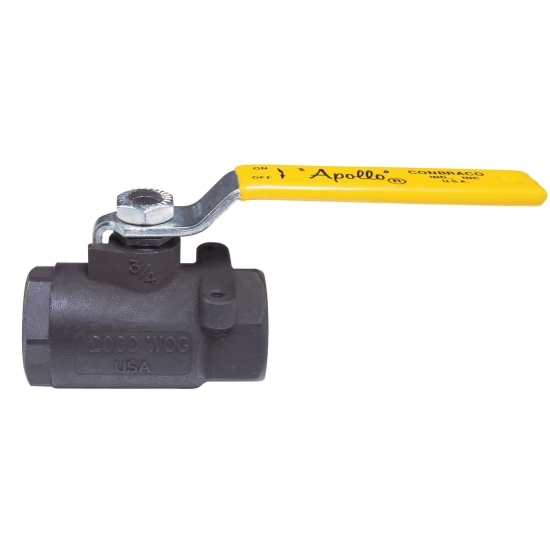

Apollo Valves 89-140 Carbon Steel Lever Handle 2-Piece Standard Port Ball Valve, 1 IN, FNPT
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 1008914560ABV
- MPN: 89-145-60A
- UPC: 670750153716
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
2-Piece Standard Port Ball Valve, Series/Model: Series 89-140, Nominal Size: 1 IN, Connection Type: FNPT, Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP), Temperature Rating: Up To 500 DEG F, 0.87 IN Opening, Carbon Steel Body Material, Lever Handle Operator Type, Handle Material: Steel With Vinyl Grip, Stem Material: 316 Stainless Steel, Trim Material: 316 Stainless Steel Ball, Packing Material: MPTFE Stem, Seat Material: RPTFE, Seal Material: PTFE, Material Standard: Body: ASTM A216 Grade WCB, Stem: ASTM A108, Finish/Color: Zinc Plated Handle, Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, CSA/CAN 3.16-M88 (2009), 3.34 IN Width, Lead Free: No, Other Physical Dimension: 2.16 IN Inlet Center To Top Of Handle, 4-3/4 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 43
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Standard Port |
| Series/Model | : | Series 89-140 |
| Nominal Size | : | 1 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 2000 PSI (CWP), 150 PSI (SWP) |
| Temperature Rating | : | Up To 500 DEG F |
| Opening Size | : | 0.87 IN |
| Body Material | : | Carbon Steel |
| Operator Type | : | Lever Handle |
| Handle Material | : | Steel With Vinyl Grip |
| Stem Material | : | 316 Stainless Steel |
| Trim Material | : | 316 Stainless Steel Ball |
| Packing Material | : | MPTFE Stem |
| Seat Material | : | RPTFE |
| Seal Material | : | PTFE |
| Material Standard | : | Body: ASTM A216 Grade WCB, Stem: ASTM A108 |
| Finish/Color | : | Zinc Plated Handle |
| Industry Standards | : | MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, CSA/CAN 3.16-M88 (2009) |
| Width | : | 3.34 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 2.16 IN Inlet Center To Top Of Handle, 4-3/4 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 43 |
| Weight | : | 1.600 LB |
- Investment cast components
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Adjustable packing gland
- Zinc phosphate corrosion protection
- 316 SS ball and stem
