1 82-145-01 APOLLO 3PC THRD BRZXSS BALL

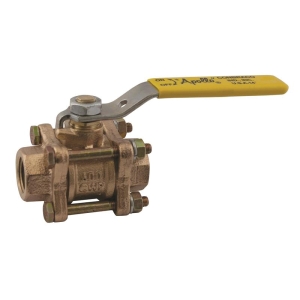

Apollo Valves Series 82-100 82-145-01 Ball Valve With Vented Ball And Stem, Standard Configuration, 1 IN, FNPT
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 1008214501BV
- MPN: 82-145-01
- UPC: 670750725098
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Apollo® 82-100 series is designed as an in-line serviceable full port bronze ball valve. SAE grade body bolts and RPTFE seals are standard.
Apollo Valves Apollo Valves Ball Valve With Vented Ball And Stem, Standard Configuration, Type: 3-Piece, Apollo Valves, Ball Valve With Vented Ball And Stem, Standard Configuration, Series/Model: Series 82-100, 1 IN Nominal, Connection Type: FNPT, 600 PSIG (CWP), 150 PSIG (SWP), 400 DEG F, Bronze Body, 316 Stainless Steel Stem, MPTFE Packing, RPTFE Seat, RPTFE Seal, Material Standard: Body And End Cap: ASTM B584, C84400, Ball: ASTM A276-316, Gland Nut: ASTM B16, C36000, Industry Standards: Build America Buy America (BABA) Act, Buy American Act (BAA), CRN Approved, Apollo Valves, Full Port, 3.230 LB Weight
| Brand Name | : | Apollo Valves |
| Item Name | : | Ball Valve With Vented Ball And Stem, Standard Configuration |
| Type | : | 3-Piece |
| Series/Model | : | Series 82-100 |
| Nominal Size | : | 1 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 600 PSIG (CWP), 150 PSIG (SWP) |
| Temperature Rating | : | 400 DEG F |
| Body Material | : | Bronze |
| Stem Material | : | 316 Stainless Steel |
| Packing Material | : | MPTFE |
| Seat Material | : | RPTFE |
| Seal Material | : | RPTFE |
| Material Standard | : | Body And End Cap: ASTM B584, C84400, Ball: ASTM A276-316, Gland Nut: ASTM B16, C36000 |
| Industry Standards | : | Build America Buy America (BABA) Act, Buy American Act (BAA), CRN Approved |
| Brand | : | Apollo Valves |
| Port | : | Full |
| Weight | : | 3.230 LB |
- Dezincification-resistant bronze body
- Adjustable packing gland
- Blowout-proof stem design
- Premium RPTFE seats and seals
- Full port ball configuration in all sizes
- 100% factory tested
- Made in USA
