1 LEAD FREE C X C FP BRZ BALL VALVE

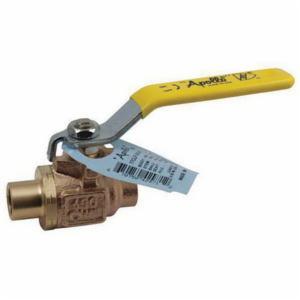

Apollo Valves 77CLF-240 Lead Free Bronze Lever Handle 2-Piece Full-Port In-Line Standard Ball Valve, 1 IN, Compression (Solder)
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 10077CLF24501BV
- MPN: 77CLF-245-01
- UPC: 670750490507
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
2-Piece Full-Port In-Line Standard Ball Valve, Series/Model: Series 77CLF-240, Nominal Size: 1 IN, Connection Type: Compression (Solder), Pressure Rating: 600 PSI (CWP), 150 PSI (SWP), Temperature Rating: -50 To 400 DEG F, 1 IN Opening, Bronze Body Material, Lever Handle Operator Type, Handle Material: Steel With Vinyl Grip, Stem Material: 316 Stainless Steel, Trim Material: 316 Stainless Steel Ball, Packing Material: MPTFE, Seat Material: MPTFE, Seal Material: PTFE, Material Specification: Body: UNS C89836, Stem: UNS C27451, Finish/Color: Zinc Plated Handle, Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C, NSF/ANSI 61 (2010) Section 8, Annex F And G, 3.61 IN Width, Lead Free: Yes, Other Physical Dimension: 2 IN Inlet Center To Top Of Handle, 4.88 IN Handle Length
| Item Name | : | In-Line Standard Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Series 77CLF-240 |
| Nominal Size | : | 1 IN |
| Connection Type | : | Compression (Solder) |
| Pressure Rating | : | 600 PSI (CWP), 150 PSI (SWP) |
| Temperature Rating | : | -50 To 400 DEG F |
| Opening Size | : | 1 IN |
| Body Material | : | Bronze |
| Operator Type | : | Lever Handle |
| Handle Material | : | Steel With Vinyl Grip |
| Stem Material | : | 316 Stainless Steel |
| Trim Material | : | 316 Stainless Steel Ball |
| Packing Material | : | MPTFE |
| Seat Material | : | MPTFE |
| Seal Material | : | PTFE |
| Material Specification | : | Body: UNS C89836, Stem: UNS C27451 |
| Finish/Color | : | Zinc Plated Handle |
| Industry Standards | : | MSS-SP-110 Compliant, CRN: OC10908.5C, NSF/ANSI 61 (2010) Section 8, Annex F And G |
| Width | : | 3.61 IN |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 2 IN Inlet Center To Top Of Handle, 4.88 IN Handle Length |
| Weight | : | 1.510 LB |
The Apollo® 77CLF "Contractor Series" 2 piece ball valve features a de-zincification resistant, lead free bronze body, premium "multi-fill" MPTFE seats And stem packing and a lead free "Solid Ball" design that delivers true full-port flow performance. Cast And machined in Apollo’s South Carolina manufacturing plants using proven lead free materials.
- 29 IN-HG vacuum rating
- Blow-out proof stem design
- Adjustable stem packing
- Full port solid ball design
- 100% factory tested
- C27451 lead free brass ( 1/4 - 1/2 IN), UNS C89836 bronze (3/4 -2-1/2 IN) retainer
Application: For use in potable water applications
