2-1/2X1 CXC PRESS RED COUPLING

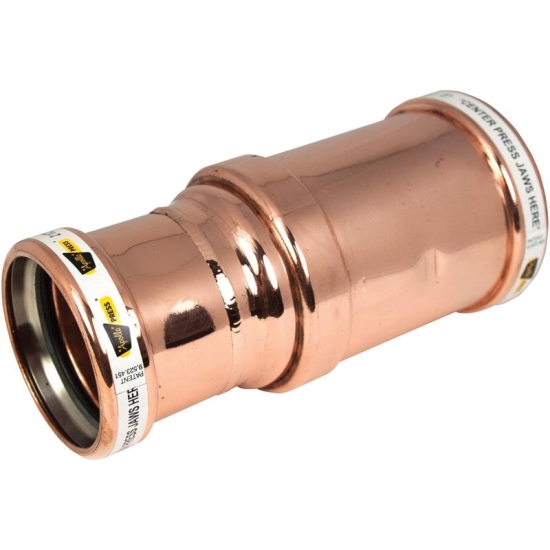

Apollo Press® Model 801RXL 10066440 Reducing Coupling, 2-1/2 X 1 IN, Press, Copper
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Press
- MGPN: APOLLO PRESS RED CXC 2-1/2X1
- MPN: 10066440
- UPC: 683264664401
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The ApolloPress® 801 large diameter press reducing coupling features a lead-free dezincification-resistant copper body, a patented stainless steel solid cross section grab ring, a nylon separation ring and an EPDM O-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
Apollo Press® Reducing Coupling, Reducing Coupling, Series/Model: Model 801RXL, 2-1/2 X 1 IN Nominal, Connection Type: Press, Copper, Material Specification: UNS C12200, 6.73 IN Length, 300 PSI Maximum Pressure, 32 - 250 DEG F, Industry Standards: CRN, FM Approved, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI-372, NSF/ANSI-61, Other Physical Dimension: 1.93 IN Center To End, Lead Free: Yes, 1.830 LB Weight
| Item Name | : | Reducing Coupling |
| Series/Model | : | Model 801RXL |
| Nominal Size | : | 2-1/2 X 1 IN |
| Connection Type | : | Press |
| Material | : | Copper |
| Material Specification | : | UNS C12200 |
| Length | : | 6.73 IN |
| Maximum Pressure | : | 300 PSI |
| Temperature Rating | : | 32 - 250 DEG F |
| Industry Standards | : | CRN, FM Approved, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI-372, NSF/ANSI-61 |
| Other Physical Dimension | : | 1.93 IN Center To End |
| Lead Free | : | Yes |
| Weight | : | 1.830 LB |
- Lead-free construction
- Leak Before Press® technology
- Visual element, break away band
