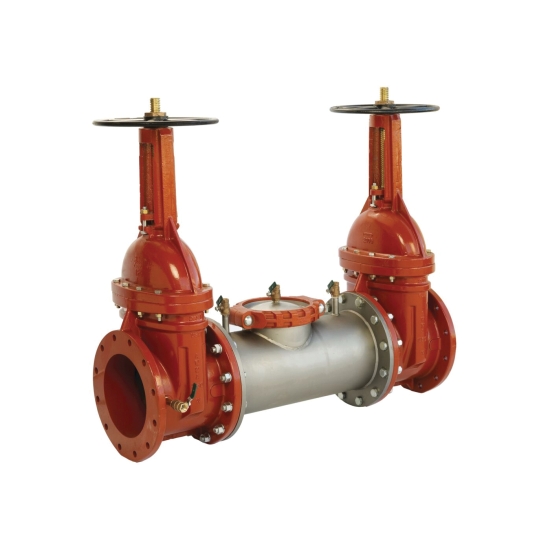

4 AMES 2000SS W/OS&Y

This 4 IN lead-free double check valve backflow preventer assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or back pressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact and short lay length design with a single access cover for easy maintenance is approved for horizontal, vertical and retrofit installations. This assembly consists of a lightweight stainless steel body, outside stem and yoke resilient seated gate valves, spring loaded cam check valves and test cocks.

Ames Double Check Valve Backflow Preventer Assembly, Item Name: Double Check Valve Backflow Preventer Assembly, Series/Model: 2000SS, 4 X 4 IN Nominal, Flanged Joint X Flanged Joint Connection, 175 PSI, 33 - 110 DEG F, 22-3/4 IN Opening, Stainless Steel Body, Rubber Seat, Industry Standards: ASSE 1015, AWWA C510-92, CSA B64.5 Certified, cULus Listed, FM Approved, 40 IN Width, Lead Free: Yes, Additional Specifications: Body Pattern: Straight, Disc Material: Rubber, 230.000 LB Weight

• One top entry access cover for easy maintenance
• Non-health hazard application
• No special tools are required
• Compact design
• Low pressure drop
• Modular construction
• The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight

• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/AMES2000SSOSY4_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/AMES2000SSOSY4_Spec.pdf
