A/S 606B.161.002 SELECTRONIC EXP TOILET FLUSH VALVE, BASE, 1.6 GPF

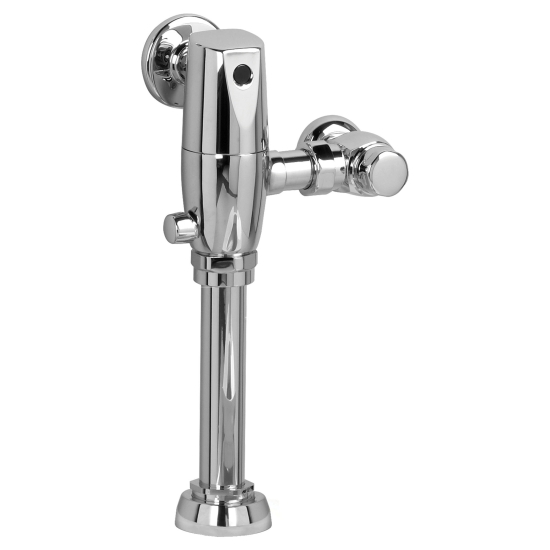

American Standard Selectronic® 606B.161.002 Polished Chrome DZR Brass Body Sensor Operated Flush Valve, 1 IN, 1.6 GPF
- Manufacturer: American Standard
- Brand: American Standard
- MGPN: AS606B161002
- MPN: 606B.161.002
- UPC: 012611592386
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Exposed Selectronic® toilet flush valve is now capable of meeting ADA clearance requirements when installed under a grab-bar that is installed at 36 in height from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.
| Sub Brand | : | Selectronic® |
| Item Name | : | Flush Valve |
| Type | : | Sensor Operated |
| Fixture Type | : | Toilet |
| Inlet Size | : | 1 IN |
| Rough-In | : | 11-1/2 IN |
| Spud Coupling | : | 1-1/2 IN |
| Gallons Per Flush | : | 1.6 GPF |
| Pressure Rating | : | 25 - 80 PSI |
| Connection Location | : | Top |
| Power Source | : | AC Hard-Wired |
| Sensor Range | : | 15-3/4 - 31-1/2 IN |
| Material | : | DZR Brass Body, Metal Cover |
| Exposed/Concealed | : | Exposed |
| Finish/Color | : | Polished Chrome |
| Industry Standards | : | ASSE 1037, ANSI/ASME A112.19.2, ADA Compliant |
| Width | : | 2-7/8 IN |
| Height | : | 16 IN |
| Additional Specifications | : | Includes: Vandal-Resistant Stop Cap, Angle Stop With Back-Flow Protection, Vacuum Breaker, Water Efficient: Yes |
- For flushometer bowls with 1-1/2 IN exposed top spud
- Touchless operation limits the spread of germs
- Exclusive Dynaclean® self-cleaning wiper spring technology
- Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
- Fully mechanical manual override can operate without power
- Fail-safe operation: valve automatically closes upon loss of power or water pressure
- Proprietary brass alloy resists dezincification
- 11-1/2 IN rough-in
Instruction/Installation Manual
