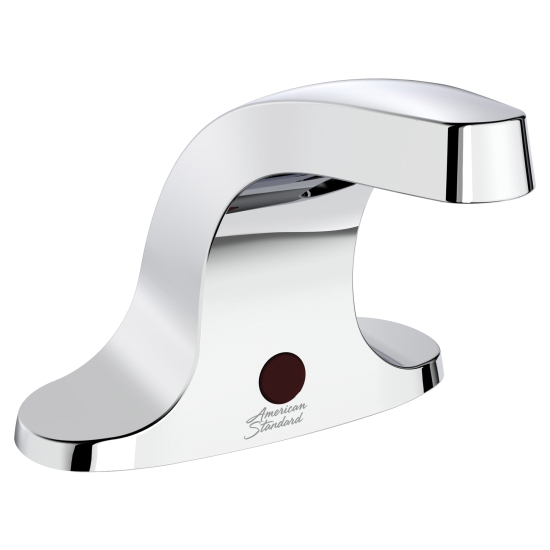

A/S 605B.202.002 INNSBROOK SELECTRONIC PROXIMITY FAUCET, BASE MODEL, 1.5 GPM, CHROME
American Standard Innsbrook Selectronic® 605B.202.002 Polished Chrome Brass Battery Powered Electronic Lavatory Faucet, 3/8 IN, Compression
- Manufacturer: American Standard
- Brand: American Standard
- MGPN: AS605B202002
- MPN: 605B.202.002
- UPC: 012611592522
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Innsbrook® Selectronic® battery powered faucet from american standard uses a multi-function sensor for hands-free, sanitary operation. Available in a range of water-saving flow rate configurations, this lead-free faucet is long lasting, durable, and easy to service.
| Sub Brand | : | Innsbrook Selectronic® |
| Item Name | : | Electronic Lavatory Faucet |
| Type | : | Battery Powered |
| Operation | : | Touch-Free Proximity |
| Inlet Size | : | 3/8 IN |
| Connection Type | : | Compression |
| Flow Rate | : | 1.5 GPM |
| Number Of Holes | : | 3 |
| Faucet Centers | : | 4 IN |
| Material | : | Brass |
| Finish/Color | : | Polished Chrome |
| Mounting | : | Centerset |
| Spout Reach | : | 5-3/8 IN |
| Spout Total Height | : | 4-7/8 IN |
| Spout Height Deck To Aerator | : | 3-3/4 IN |
| Valve Type | : | Solenoid |
| ADA Compliant | : | Yes |
| Industry Standards | : | ANSI A117.1, ASME A112.18.1, CSA B125.1, NSF 372 |
| Other Physical Dimension | : | 4-7/8 IN Height, 6-1/8 IN Width, 6-7/8 IN Length, 1-1/2 IN Maximum Deck Thickness |
| Additional Specifications | : | Water Efficient: Yes, Pressure Rating: 20 - 125 PSI |
- Touchless operation limits the spread of germs
- Single inlet for cold or tempered water
- Vandal-resistant cast 4 IN centerset spout
- Sensor is easily programmed with optional remote control
- Periodically purges stagnant water
- Automatically turns water off after 55 SEC
- Vandal-resistant 1.5 GPM pressure compensating aerator
- Detection zone can be adjusted manually or with optional remote control
Instruction/Installation Manual
