A/S 605B.105.002 SELECTRONIC CAST PROXIMITY FAUCET, BASE MODEL, 0.5 GPM, CHROME

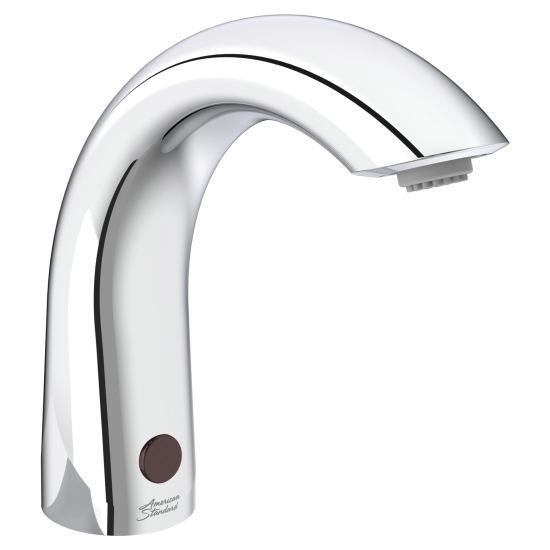

American Standard Selectronic® 605B.105.002 Polished Chrome Brass Electronic Lavatory Faucet, 3/8 IN, Compression
- Manufacturer: American Standard
- Brand: American Standard
- MGPN: AS605B105002
- MPN: 605B.105.002
- UPC: 012611592584
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Flexible Selectronic® platform with programmable, multi-function sensor. Hygienic, touch-free operation easy and flexible installation: Single post mounting with optional 4 IN and 8 IN deck plate. Water resistant solenoid enclosure mounts to wall. Durable vandal-resistant brass body: ideal for high-use commercial applications. Self-cleaning solenoid valve: wiper spring prevents clogging easy to service integrated strainer: patented integrated strainer protects solenoid from debris. Strainer is enclosed in removable debris cup for easy service. Optional auto purge feature: faucet can be programmed to open at a pre-determined time after last use to purge the faucet and water lines. Safety timer: helps prevent vandalism by turning off the faucet if the sensor is covered for 55 SEC or more. Timing is adjustable with optional remote control.
| Sub Brand | : | Selectronic® |
| Item Name | : | Electronic Lavatory Faucet |
| Operation | : | Touch-Free Proximity |
| Inlet Size | : | 3/8 IN |
| Connection Type | : | Compression |
| Flow Rate | : | 0.5 GPM |
| Number Of Holes | : | 1 |
| Material | : | Brass |
| Finish/Color | : | Polished Chrome |
| Mounting | : | Centerset |
| Spout Reach | : | 5-1/2 IN |
| Spout Total Height | : | 6-3/4 IN |
| Spout Height Deck To Aerator | : | 5-1/8 IN |
| Valve Type | : | Solenoid |
| ADA Compliant | : | Yes |
| Industry Standards | : | ANSI A117.1, ASME A112.18.1, CSA B125.1, NSF 372, CEC Lisped, CALGreen Compliant |
| Other Physical Dimension | : | 6-3/4 IN Height, 2 IN Maximum Deck Thickness |
| Additional Specifications | : | Water Efficient: Yes, Pressure Rating: 20 - 125 PSI |
- Single inlet for cold or tempered water
- Vandal-resistant cast spout with single-hole installation
- Sensor is easily programmed with optional remote control
- Periodically purges stagnant water
- Automatically turns water off after 55 SEC
- Vandal-resistant 0.5 GPM pressure compensating multi laminar spray
Instruction/Installation Manual
