3/4 FIPS X 3/4 INS UNION OUTLET CL125

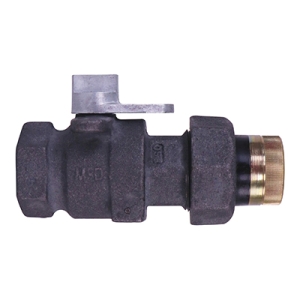

McDonald 8276A Series 4817-074 Ball Valve, 3/4 X 3/4 IN, FNPT X Female Insulated O-Ring Union, 175 PSI, Cast Iron Body
- Manufacturer: A.Y. McDonald Mfg. Co.
- Brand: McDonald
- MGPN: MCDONALD 4817-074
- MPN: 4817-074
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
McDonald Ball Valve, Item Name: Ball Valve, Series/Model: 8276A Series, 3/4 X 3/4 IN Nominal, FNPT X Female Insulated O-Ring Union Connection, 175 PSI, Pressure Class: Class 125, Cast Iron Body, Material Standard: ASTM A126 Class B, Finish/Color: Thermal-Diffusion Zinc, Industry Standards: ANSI/ASME B16.33, 5 IN Width
| Item Name | : | Ball Valve |
| Series/Model | : | 8276A Series |
| Nominal Size | : | 3/4 X 3/4 IN |
| Connection Type | : | FNPT X Female Insulated O-Ring Union |
| Pressure Rating | : | 175 PSI |
| Pressure Class | : | Class 125 |
| Body Material | : | Cast Iron |
| Material Standard | : | ASTM A126 Class B |
| Finish/Color | : | Thermal-Diffusion Zinc |
| Industry Standards | : | ANSI/ASME B16.33 |
| Width | : | 5 IN |
- UNS C36000 or CW617N brass ball rotates 360 DEG
- Blowout-proof brass operating stem with two nitrile O-rings
- Tamper-resistant design prevents disassembly with normal household tools
- Full port opening sized to accommodate the best-known stop changers
- Lockwing design accommodates standard barrel locks
- Maintenance-free design
