1/2 NIBCO T-595Y-66-LF BALL VALVE

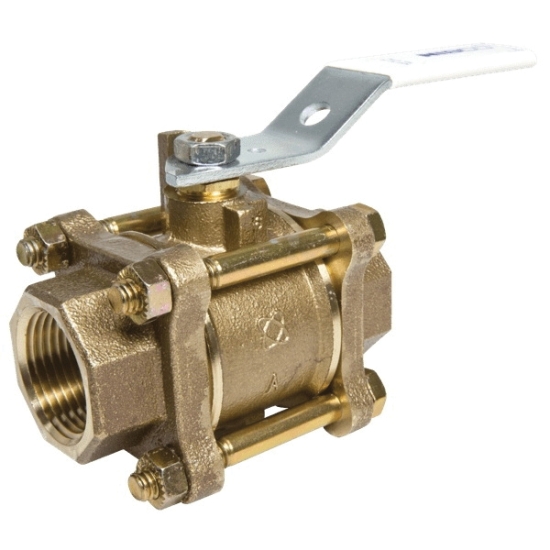

NIBCO T-595-Y-66-LF NL99HX6 Ball Valve, 1/2 IN, FPT, Silicon Bronze, 600 PSI
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV BA BR T595Y66LF 1/2
- MPN: NL99HX6
- UPC: 039923320162
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO 3-piece ball valve is constructed of high-quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The valve features threaded ends for easy installation. The lead-free ball valve is recommended for applications that deliver water for human consumption, including commercial and residential construction.
NIBCO T-595-Y-66-LF 3-Piece Full Port Quarter-Turn Ball Valve, 1/2 IN Nominal, FPT Connection, 600 PSI, 300 DEG F, Silicon Bronze Body, Plastisol-Coated Steel Handle, Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, Brass Gland, PTFE Seat, FKM Seal, Material Standard: ASTM B584, ASTM A276, ASTM B584, ASTM A276, Industry Standards: MSS-SP110/145, NSF/ANSI/CAN 61/372-8, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Lead Free: Yes, Other Physical Dimension: 2-1/2 IN Inlet To Outlet Length, 1.69 IN Top To Inlet Center
| Brand Name | : | NIBCO |
| Item Name | : | Ball Valve |
| Type | : | 3-Piece, Full Port, Quarter-Turn |
| Series/Model | : | T-595-Y-66-LF |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | FPT |
| Pressure Rating | : | 600 PSI |
| Temperature Rating | : | 300 DEG F |
| Body Material | : | Silicon Bronze |
| Handle Material | : | Plastisol-Coated Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Packing Material | : | PTFE |
| Gland Material | : | Brass |
| Seat Material | : | PTFE |
| Seal Material | : | FKM |
| Material Standard | : | ASTM B584, ASTM A276, ASTM B584, ASTM A276 |
| Industry Standards | : | MSS-SP110/145, NSF/ANSI/CAN 61/372-8, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 2-1/2 IN Inlet To Outlet Length, 1.69 IN Top To Inlet Center |
- Valve pressure rating 600 PSI/41.4 BAR non-shock cold working pressure
- Repairable design
- Blowout-proof stem design
- White handle for easy lead-free identification
- NIBCO double oval lead-free body marking
- Dezincification-resistant
- Lead-free
