B&G CB 2-1/2F CIRCUIT SETTER 117116

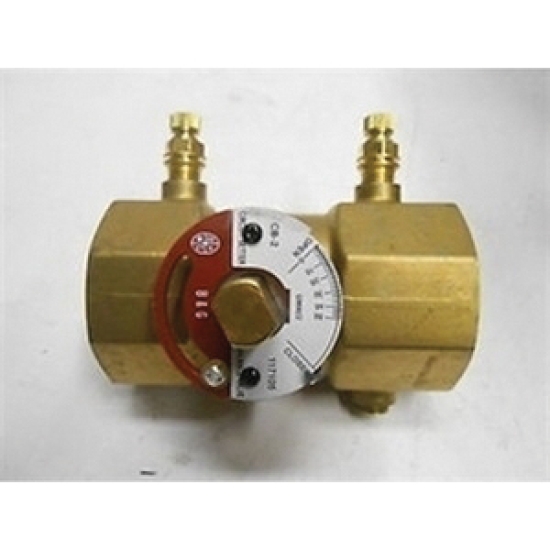

Bell & Gossett Circuit Setter Plus CB-2-1/2F 117116 Balance Valve, 2-1/2 IN, Flanged, Cast Iron, 175 PSIG
- Manufacturer: Bell and Gossett
- Brand: Bell & Gossett
- MGPN: BG CB 2-1/2F
- MPN: 117116
- UPC: 683328171166
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Bell & Gossett circuit setter calibrated balance valve is a precision machined triple-purpose balancing instrument. It is precisely calibrated for use as a pre-settable balance valve, variable orifice flow meter and positive shut-off service valve. Valves are furnished with a calibrated nameplate and memory stop indicator which permits the value to be pre-set to a fixed open position and then closed for service without disturbing valve setting. Valves are equipped with capped readout valves fitted with internal check valves.
Bell & Gossett Circuit Setter Plus CB-2-1/2F Calibrated Balance Valve, 2-1/2 IN Nominal, Flanged Connection, 175 PSIG, 250 DEG F, Cast Iron Body, EPDM Stem, EPDM Trim, Glass and Carbon Filled TFE Seat, 6-9/16 IN Width, 7 IN Height
| Sub Brand | : | Circuit Setter Plus |
| Item Name | : | Balance Valve |
| Type | : | Calibrated |
| Series/Model | : | CB-2-1/2F |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Flanged |
| Pressure Rating | : | 175 PSIG |
| Temperature Rating | : | 250 DEG F |
| Body Material | : | Cast Iron |
| Stem Material | : | EPDM |
| Trim Material | : | EPDM |
| Seat Material | : | Glass and Carbon Filled TFE |
| Width | : | 6-9/16 IN |
| Height | : | 7 IN |
