A/S 2257.101.020 AFWALL MILLENIUM WHITE BOWL ELONGATED TOP SPUD

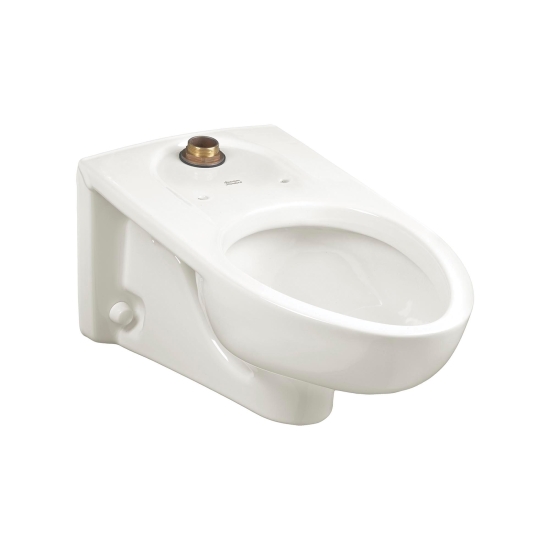

American Standard 2257.101.020 White Vitreous China Elongated Front Toilet Bowl, 12 IN Rough-In, 1.1 - 1.6 GPF
- Manufacturer: American Standard
- Brand: American Standard
- MGPN: AS2257101020
- MPN: 2257.101.020
- UPC: 791556025110
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Introducing the new Afwall® Millennium™ FloWise® wall-hung toilet line from American Standard. Our reliable and dependable wall-hung toilet is now even better and more powerful with a premier flushing performance at lower flush volume, increased static weight load capacity, and streamlined design.
| Item Name | : | Toilet Bowl |
| Shape | : | Elongated Front |
| Water Per Flush | : | 1.1 - 1.6 GPF |
| Water Surface Area | : | 10 X 12 IN |
| Pressure Rating | : | 25 - 80 PSI |
| Bowl Height | : | 13-1/8 IN |
| Rough-In | : | 12 IN |
| Trap Way Size | : | 2-1/8 IN |
| Spud Size | : | 1-1/2 IN Top |
| Mounting | : | Wall |
| Material | : | Vitreous China |
| Finish/Color | : | White |
| ADA Compliant | : | Yes |
| Bowl Width | : | 14 IN |
| Bowl Depth | : | 26 IN |
| Industry Standards | : | ASME A112.19.2/CSA B45.1, CEC Listed |
- High efficiency toilet operates in the range of 1.1 - 1.6 GPF
- Maximum performance score Of 1000 G at 1.1 - 1.6 GPF
- Conventional glaze
- Direct-fed siphon jet flush action
- 2-1/8 IN fully-glazed trapway 2 IN minimum ballpass
- Static weight load of 1000 LB (453 KG), not recommended for bariatric use
- Concealed trapway design with condensation channel
