1 PC741 PRESS P X FLG ADAPTER

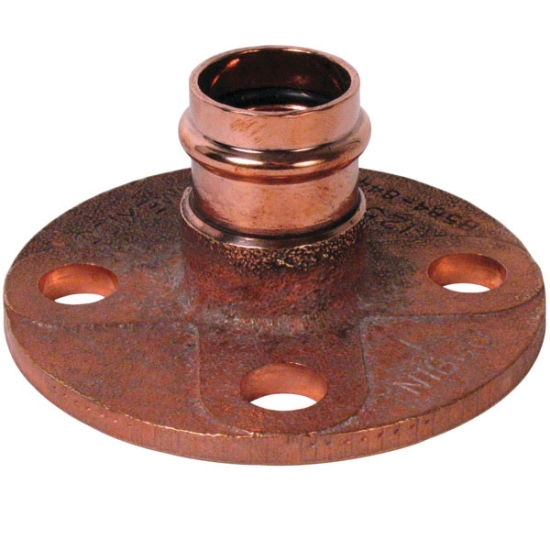

Nibco Press System® Cast Bronze Large Diameter Companion Flange 1 IN, Press X Flanged
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: 100CUNPFLA
- MPN: B305358PC
- UPC: 039923344670
- UOM: EA
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Nibco® Press System® companion flange features an inboard bead and EPDM o-ring. Simply applying pressure from a pressing tool tightens the o-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The companion flange has a copper press connection and flanged end connection. The fitting provides a method for adapting a press connection to a flange connection.
| Sub Brand | : | Press System® |
| Item Name | : | Companion Flange |
| Type | : | Large Diameter |
| Series/Model | : | Model PC741 |
| Tube Size | : | 1 IN |
| Nominal Size | : | 1 IN |
| Outside Diameter | : | 4-1/4 IN |
| Connection Type | : | Press X Flanged |
| Thickness | : | 1/4 IN |
| Bolt Circle Diameter | : | 3-1/8 IN |
| Material | : | Cast Bronze |
| Material Standard | : | ASTM B584, ASTM B75 |
| Material Specification | : | UNS C84400, UNS C12200 |
| Maximum Pressure | : | 105 PSI (CWP), 90 PSI |
| Temperature Rating | : | 250 DEG F |
| Industry Standards | : | MSS SP-106, CSA MSE 13 And PS-117 Certified |
- Pressure temperature limits maximum pressure 105 PSI CWP; 90 PSI at 250 DEG F. These limits are IN accordance with MSS SP-106 which governs cast copper alloy flanges and flanged fittings: class 125, 150, and 300
- Wrot copper outlet
- Cast bronze flange
- Dezincification-resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
