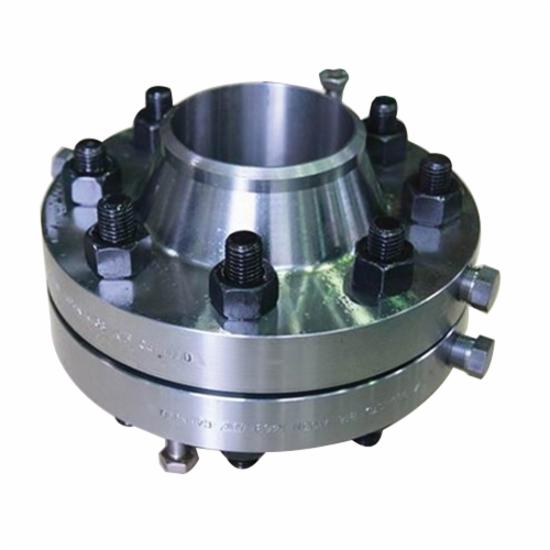

4 300 FS RF WELDNECK ORIFICE FLG
Class 300 Forged Steel Raised Face Orifice Weld Neck Flange, 4 IN, 10 IN OD
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 40030FSWNOF
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Orifice Weld Neck Flange |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 4 IN |
| Outside Diameter | : | 10 IN |
| Thickness | : | 1.44 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 7.88 IN |
| Number Of Bolts | : | 8 |
| Bolt Hole Diameter | : | 13/16 IN |
| Hub Diameter | : | 5-3/4 IN |
| Length Through Hub | : | 3.56 IN |
| Material | : | Forged Steel |
| Industry Standards | : | ASME/ANSI B16.36 |
| Other Physical Dimension | : | 6.19 IN Diameter Of Raised Face, 1/2 IN Diameter Of Pressure Connection (TT) |
