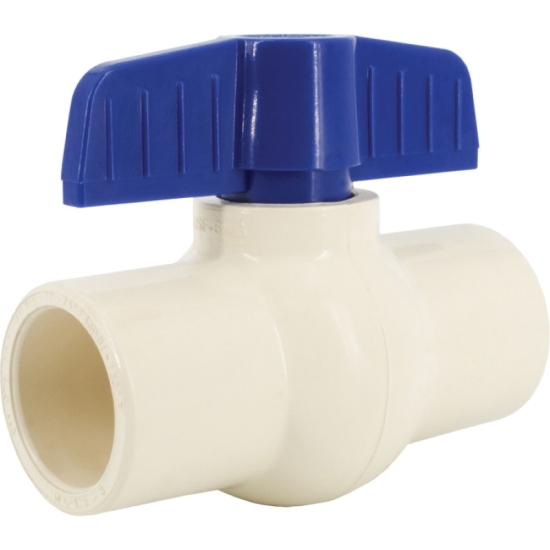

Compact Ball Valve, Series/Model: Model S-605, Nominal Size: 1/2 IN CTS, Connection Type: Solvent, Pressure Rating: 150 PSI (WOG) At 73 DEG F, Temperature Rating: 180 DEG F, CPVC Body Material, Handle Material: ABS, Stem Material: CPVC, Trim Material: CPVC Ball, Seat Material: Teflon, Seal Material: EPDM O-Ring, Material Standard: Body, Ball and Stem: ASTM D1784, Finish/Color: Bone, Industry Standards: NSF Certified, ISO 9002, 2.69 IN Width, 2 IN Height, Lead Free: No, Other Physical Dimension: 2.38 IN Handle Length

• Constructed of heavy-duty, corrosion-proof, virgin CPVC resin
• Plumbing sizes 1/2 IN through 1 IN feature a full-port ball design
• PTFE seats and EPDM stem o-ring assure maintenance free operation and maximum service life
• Compact-pattern molded-in-place bone-colored body and one-piece ball-stem design, provide exceptional resistance to wear and to tubing stress distortion
• Designed and certified for installation onto copper-tube-sizes (CTS) CPVC tubing, potable hot and cold water plumbing and commercial plumbing applications
• Not suitable for use with petroleum-based medias or compressed-air service

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/050CPCTSBVL_Broc.pdf
• Submittal Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Legend_202-403_Submittal_Sheet.pdf
