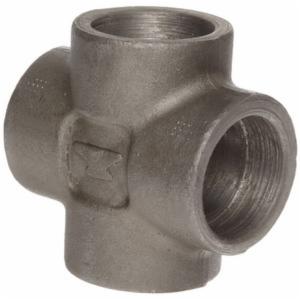

1/8 3000 FS SW CROSS
Class 3000 SCH 80 Forged Steel Socket Weld Cross, 1/8 IN
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 0123MFSSCR
- MPN: 0123MFSSCR
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Cross, Class 3000 Pressure Class, Nominal Size: 1/8 IN, Connection Type: Socket Weld, SCH 80 Schedule, Material: Forged Steel, Material Standard: ASTM A105, Inside Diameter: 0.42 IN, Outside Diameter: 29/32 IN, Industry Standards: ASME B16.11, Other Physical Dimension: 7/8 IN Center To End, 3/8 IN Socket Length, Domestic/Import: Domestic
| Item Name | : | Cross |
| Pressure Class | : | Class 3000 |
| Nominal Size | : | 1/8 IN |
| Connection Type | : | Socket Weld |
| Schedule | : | SCH 80 |
| Material | : | Forged Steel |
| Material Standard | : | ASTM A105 |
| Inside Diameter | : | 0.42 IN |
| Outside Diameter | : | 29/32 IN |
| Industry Standards | : | ASME B16.11 |
| Other Physical Dimension | : | 7/8 IN Center To End, 3/8 IN Socket Length |
| Domestic/Import | : | Domestic |
| Weight | : | 0.250 LB |
