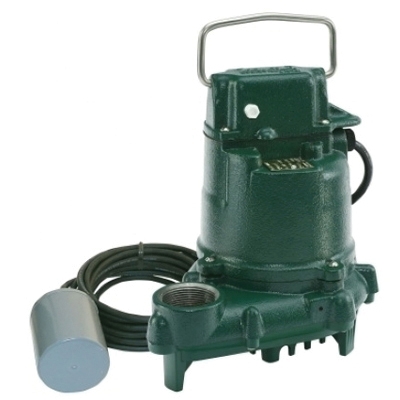

Automatic Mighty-Mate Submersible Sump Pump, Series/Model: Model 53, Size: 1-1/2 IN, 19.25 FT Maximum Head, Flow Rate: 43 GPM, 1/3 HP HP Rating, Voltage Rating: 115 VAC, Amperage Rating: 9.7 A, 60 HZ Frequency Rating, 1 PH Phase, 1550 RPM RPM Rating, Cast Iron Housing, Plastic With Metal Insert Impeller, AISI 1215 Cold Rolled Steel Shaft, Connection Type: NPT, Finish/Color: Epoxy Coated, Temperature Rating: 130 DEG F, Industry Standards: C/US Certified To CSA Standard C22.2 Number 108, Tested To UL Standard UL778, SSPMA Certified, 10-3/32 IN Width, 10-1/16 IN Height, Additional Specifications: Solids Handling: 1/2 IN Spherical, Cord Length: 9 FT

• Corrosion-resistant, powder-coated epoxy finish
• No sheet metal parts to rust or corrode
• Stainless steel screws, switch arm, guard, and handle
• No screens to clog
• Watertight, neoprene square ring between motor and pump housing
• Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
• Upper and lower sleeve bearings running in bath of oil
• Entire unit pressure-tested after assembly
• Carbon and ceramic shaft seal
• Maximum temperature for effluent or dewatering: 130 DEG F (54 DEG C)
• Passes 1/2 IN (13 MM) spherical solids
• 1-1/2 IN NPT discharge
• Watertight and dust-tight
• Cast iron motor and pump housing
• Engineered, glass-filled, plastic impeller with metal insert

• Technical Drawing https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/BN53C_Tech.pdf
• Brochure https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Zoeller_BN53C_Brochure.pdf
• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Zoeller_BN53C_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Zoeller_BN53C_Specification_Sheet.pdf
• Specification Sheet_1 https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Zoeller_BN53C_Specification_Sheet_1.pdf
