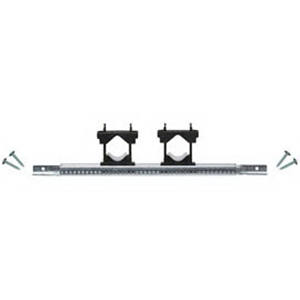

UNIVERSAL BRACKET FOR 14 - 26 OPENING

PowerBar™ style Adjustable Universal Bracket, Series/Model: Series 523-24, Length: 14 - 26 IN, Material: 20 GA Steel, Load Capacity: 150 LB At 14 IN Bracket Span, Industry Standards: cUPC Listed, Finish/Color: Zinc Plated, Other Physical Dimension: 13/64 IN On Center Pilot Hole Spacing, 1 IN Tab Length, 0.15 IN Tab Hole Diameter, 0.529 IN Bracket Height, 0.602 IN Bracket Width, 0.1 IN Pilot Hole Diameter, 0.036 IN Metal Thickness

• Bracket shall be corrosion resistant, adjust telescopically from 14 - 26 IN and have dual fastening tabs on each end
• Pilot holes for number 6 - 10 screws shall be provided on three sides of the bracket
• System shall be approved for use with copper tube, CPVC tube, PEX/PB tube, steel pipe, CSST lines, plastic or steel conduit and low voltage DataCom cable
• System shall be UV resistant
• Includes two nylon channel clamps and four screws
• Nylon 66, V2 flame rating channel clamp (black)
• Thermoplastic elastomer clamp insert
• #8 X 1 IN phillips, panhead, drill-tip, zinc plated screws
• 1-7/8 IN channel clamp post, 1/4 - 1-1/8 IN channel clamp capacity, 1-7/8 IN channel clamp base
• 1 IN tab screw length
• 38 LB at 131 - 179 DEG F 17 IN bracket span nylon channel clamps load
• Shorter bracket expands to fit openings from 9 - 16 IN
• Longer bracket expands to fit openings from 14 - 26 IN

Application: Ideal for supporting pipe or stub outs
