ECAST 895-317ABCP 4 CC 2 HDL FAUCET

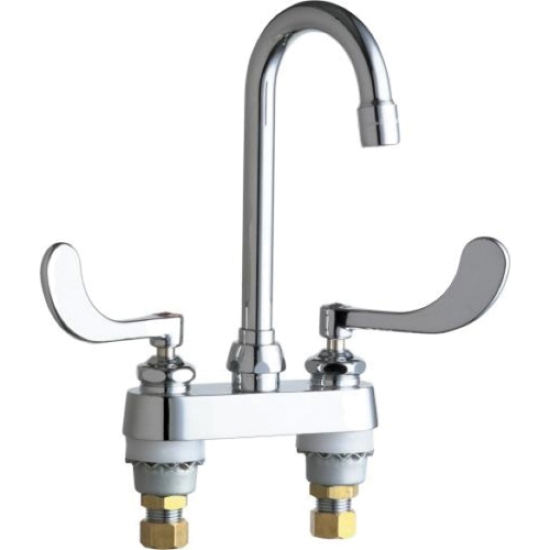

Chicago Faucet 895-317ABCP Chrome Plated Cast Brass Manual Sink Faucet, 1/2 IN, NPSM
- Manufacturer: Chicago Faucet Company
- Brand: Chicago Faucet
- MGPN: 895317ABCP
- MPN: 895-317ABCP
- UPC: 611943171605
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Sink Faucet, Manual Operation, 2 Handles, Handle Type: Wrist Blade, 1/2 IN Inlet Size, Connection Type: NPSM, Flow Rate: 2.2 GPM, 2 Holes, 4 IN Faucet Centers, Material: Cast Brass, Finish/Color: Chrome Plated, Mounting: Deck, 3-5/8 IN Spout Reach, 9-5/8 IN Spout Total Height, 6-3/4 IN Spout Height Deck To Aerator, Flow Outlet Type: Aerator, ADA Compliant: Yes, Industry Standards: ASME A112.18.1/CSA B125.1, California Health And Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, Louisiana Low Lead Law HB.471, NSF/ANSI 372 Low Lead Content, Certified To NSF/ANSI 61, Section 9 by CSA, ADA Compliant ANSI/ICC A117.1, Temperature Rating: 40 - 140 DEG F, Additional Specifications: Pressure Rating: 20 - 125 PSI
| Item Name | : | Sink Faucet |
| Operation | : | Manual |
| Number Of Handles | : | 2 |
| Handle Type | : | Wrist Blade |
| Inlet Size | : | 1/2 IN |
| Connection Type | : | NPSM |
| Flow Rate | : | 2.2 GPM |
| Number Of Holes | : | 2 |
| Faucet Centers | : | 4 IN |
| Material | : | Cast Brass |
| Finish/Color | : | Chrome Plated |
| Mounting | : | Deck |
| Spout Reach | : | 3-5/8 IN |
| Spout Total Height | : | 9-5/8 IN |
| Spout Height Deck To Aerator | : | 6-3/4 IN |
| Flow Outlet Type | : | Aerator |
| ADA Compliant | : | Yes |
| Industry Standards | : | ASME A112.18.1/CSA B125.1, California Health And Safety Code 116875 (AB 1953-2006), Vermont Bill S.152, Louisiana Low Lead Law HB.471, NSF/ANSI 372 Low Lead Content, Certified To NSF/ANSI 61, Section 9 by CSA, ADA Compliant ANSI/ICC A117.1 |
| Temperature Rating | : | 40 - 140 DEG F |
| Additional Specifications | : | Pressure Rating: 20 - 125 PSI |
- Handles include color-coded index
- 4 IN fixed centers
- 3-1/2 IN rigid/swing gooseneck spout
- Pressure compensating Softflo aerator 2.2 GPM
- Vandal-proof 4 IN wristblade handle
- Quaturn™ compression operating cartridge, right-hand
- Quaturn™ compression operating cartridge, left-hand
- Ecast® design provides durable cast brass construction with total lead
- Content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933
Instruction/Installation Manual
