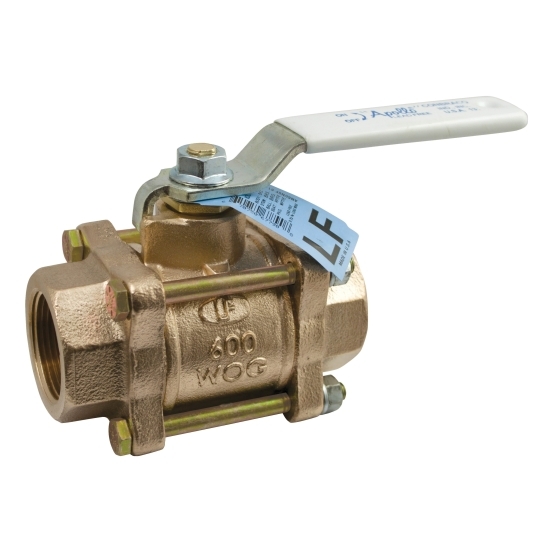

3-Piece Full-Port In-Line Standard Ball Valve, Series/Model: Series 82LF-100, Nominal Size: 3/4 IN, Connection Type: FNPT, Pressure Rating: 600 PSI (CWP), 150 PSI (SWP), Temperature Rating: -50 To 400 DEG F, 0.81 IN Opening, Bronze Body Material, Lever Handle Operator Type, Handle Material: Steel With Vinyl Grip, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: MPTFE Stem, Seat Material: RPTFE, Seal Material: PTFE, Material Specification: Body: UNS C89836, Ball And Stem: UNS C27451, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, CSA B51 CRN: 0C10908.5C, NSF /ANSI 61-8, Annex G, NSF/ANSI 372 Lead Free, 3.43 IN Width, Lead Free: Yes, Other Physical Dimension: 2.18 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length

The Apollo® 82LF series offers the same rugged features as the standard 82 Series with the added advantage of lead-free materials. Designed to provide on service life and ease of in-line maintenance. SAE grade body bolts are standard. These valves are cast and machined in Apollo®'s South Carolin manufacturing plants.

• ASTM B584 bronze body and ends
• SAE grade 8 body bolts
• Adjustable packing nut
• Full-port flow
• 600 CWP, 150 SWP
• 82-14X with SS ball and stem option
• Easily identifiable white handle grip and blue "lead-free" hang tag
• 100% factory tested
• Made in the USA

• Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_82LF-101-01_Instruction_Installation_Manual.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_82LF-101-01_Specification_Sheet.pdf
• Submittal Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_82LF-101-01_Submittal_Sheet.pdf
• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/cat_CPCAball_Broc.pdf
