VIC S27-1BJ-S440 WHT PD SR 286

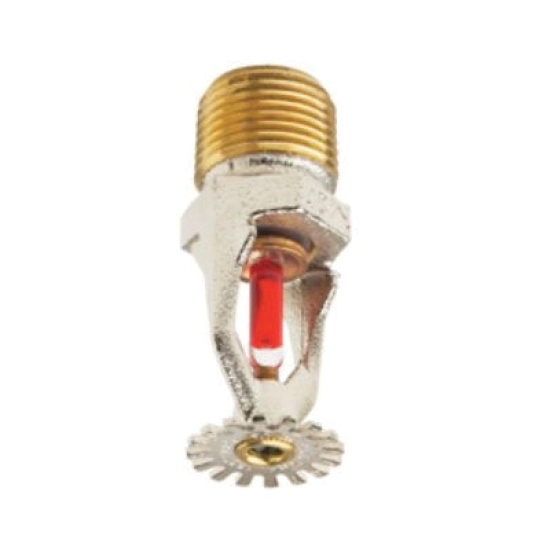

Victaulic FireLock™ Series FL-SR/Model V2707 S271BJS440 Standard Sprinkler Head, 1/2 IN, 1/2 IN Orifice, NPT
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC HEAD S27-1BJ-S440 WHT PD 286
- MPN: S271BJS440
- UPC: 688304287305
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic FireLock™ Standard Sprinkler Head, FireLock™, Standard Sprinkler Head, Series/Model: Series FL-SR/Model V2707, 1/2 IN, 1/2 IN Orifice, Connection Type: NPT, Deflector Size: 1 IN, K Factor: 5.6, Deflector Type: Pendent, Response Type: Standard, 175 PSI (FM), 250 PSI (UL) Maximum Pressure, 5 MM Bulb Element, V27 Open End, 3/16 Hex-Bit Wrench, Bronze Deflector, Brass Frame, Glass Bulb, Finish/Color: White Painted, 286 DEG F, 2-3/8 IN Height, Industry Standards: cULus Listed, FM Approved, CCC, NYC 28-113, Additional Specifications: Minimum Operating Pressure: 7 PSI, Factory Hydrostatic Test: 100% At 500 PSI, 0.165 LB Weight
| Sub Brand | : | FireLock™ |
| Item Name | : | Standard Sprinkler Head |
| Series/Model | : | Series FL-SR/Model V2707 |
| Size | : | 1/2 IN |
| Orifice | : | 1/2 IN |
| Connection Type | : | NPT |
| Deflector Size | : | 1 IN |
| K Factor | : | 5.6 |
| Deflector Type | : | Pendent |
| Response Type | : | Standard |
| Maximum Pressure | : | 175 PSI (FM), 250 PSI (UL) |
| Element | : | 5 MM Bulb |
| Wrench | : | V27 Open End, 3/16 Hex-Bit |
| Deflector Material | : | Bronze |
| Frame Material | : | Brass |
| Bulb Material | : | Glass |
| Finish/Color | : | White Painted |
| Temperature Rating | : | 286 DEG F |
| Height | : | 2-3/8 IN |
| Industry Standards | : | cULus Listed, FM Approved, CCC, NYC 28-113 |
| Additional Specifications | : | Minimum Operating Pressure: 7 PSI, Factory Hydrostatic Test: 100% At 500 PSI |
| Weight | : | 0.165 LB |
