SHORT BEAM CLAMP 90

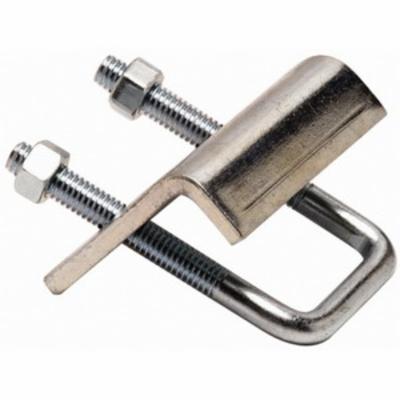

Low Carbon Steel 90 DEG Short Clamp With U-3/4 IN, 1200 LB
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: B441-2290
- MPN: B441-2290
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
90 DEG Short Beam Clamp With U-Bolt, 1200 LB Maximum Load, 3/4 IN Jaw Opening, Material: Low Carbon Steel, Torque Rating: 150 IN-LB, 3 IN Length, Other Physical Dimension: 1/4 IN Thickness
| IMPORTANT NOTICE | : | For the latest specifications and to make sure this item conforms to your needs, call 888-756-4110 or email [email protected] |
| Item Name | : | Beam Clamp With U-Bolt |
| Type | : | 90 DEG Short |
| Maximum Load | : | 1200 LB |
| Jaw Opening | : | 3/4 IN |
| Material | : | Low Carbon Steel |
| Torque Rating | : | 150 IN-LB |
| Length | : | 3 IN |
| Other Physical Dimension | : | 1/4 IN Thickness |
- Factor of safety 5
Application: For use with 13/16 - 1-5/8 IN high channel
