3 JAMESBURY THD FULL PORT

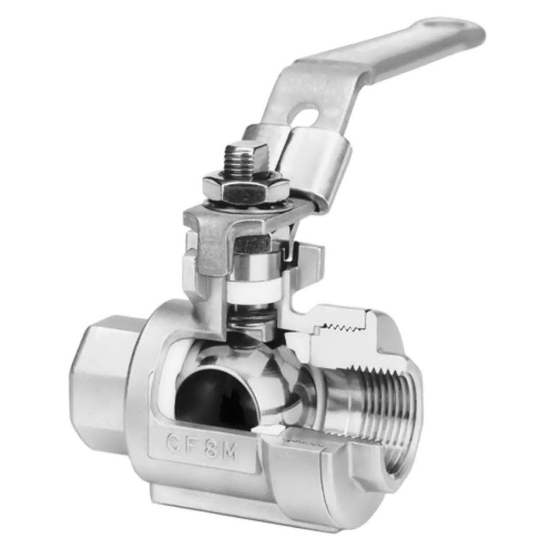

Jamesbury™ Value-Line™ Series 6F 6F-2236MT 3 Ball Valve, 3 IN, Threaded, 1000 PSI, Carbon Steel Body
- Manufacturer: Valmet
- Brand: Jamesbury™
- MGPN: J 6F-2236MT 3
- MPN: 6F-2236MT 3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Jamesbury Value-Line series 6F ball valve offers exceptional economy and proven performance. These valves are Fire-Tite™ and configured with threaded ends for use with NPT pipe. Its full bore configuration and high pressure rating (1000 PSI/69 BAR for 1/2 - 2 IN/DN 15 - 50, 800 PSI/55 BAR for 3 IN/DN 80) make it an ideal choice for the majority of applications where tight shut-off is required.
Jamesbury™ Jamesbury™ Value-Line™ Ball Valve, Type: 2-Piece, Full-Port, Value-Line™, Ball Valve, Series/Model: Series 6F, 3 IN Nominal, Connection Type: Threaded, 1000 PSI, 500 DEG F, 2.99 IN Opening, Carbon Steel Body, Carbon Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Filled PTFE Seat, PTFE Seal, Material Standard: ASTM A216 Grade WCB, Other Physical Dimension: 7.36 IN Inlet To Outlet Length, 6.14 IN Top To Inlet Center, Jamesbury™
| Sub Brand | : | Value-Line™ |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Series 6F |
| Nominal Size | : | 3 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 1000 PSI |
| Temperature Rating | : | 500 DEG F |
| Opening Size | : | 2.99 IN |
| Body Material | : | Carbon Steel |
| Handle Material | : | Carbon Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | Filled PTFE |
| Seal Material | : | PTFE |
| Material Standard | : | ASTM A216 Grade WCB |
| Other Physical Dimension | : | 7.36 IN Inlet To Outlet Length, 6.14 IN Top To Inlet Center |
| Brand | : | Jamesbury™ |
- Robust engineering design
- Manual operation
- Long service life
- Bubble-tight shut-off
