1 JAMESBURY THD STD PORT

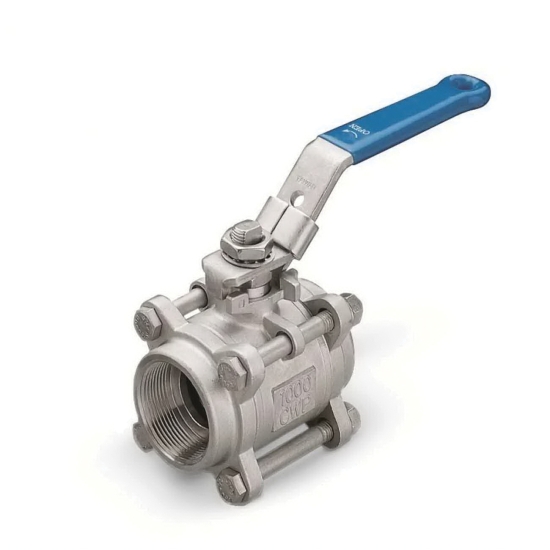

Jamesbury™ Value-Line™ Series 3A 3A-2236MT 1 Ball Valve, 1 IN, Threaded, 1000 PSI, Carbon Steel Body
- Manufacturer: Valmet
- Brand: Jamesbury™
- MGPN: J 3A-2236MT 1
- MPN: 3A-2236MT 1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Jamesbury™ Jamesbury™ Value-Line™ Ball Valve, Type: 3-Piece, Standard Port, Value-Line™, Ball Valve, Series/Model: Series 3A, 1 IN Nominal, Connection Type: Threaded, 1000 PSI, 500 DEG F, 0.87 IN Opening, Carbon Steel Body, Carbon Steel Handle, Stainless Steel Stem, Stainless Steel Trim, PTFE Seat, PTFE Seal, Material Standard: ASTM A216 Grade WCB, Other Physical Dimension: 3.48 IN Inlet To Outlet Length, 3 IN Top To Inlet Center, Jamesbury™
| Sub Brand | : | Value-Line™ |
| Item Name | : | Ball Valve |
| Type | : | 3-Piece, Standard Port |
| Series/Model | : | Series 3A |
| Nominal Size | : | 1 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 1000 PSI |
| Temperature Rating | : | 500 DEG F |
| Opening Size | : | 0.87 IN |
| Body Material | : | Carbon Steel |
| Handle Material | : | Carbon Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | PTFE |
| Seal Material | : | PTFE |
| Material Standard | : | ASTM A216 Grade WCB |
| Other Physical Dimension | : | 3.48 IN Inlet To Outlet Length, 3 IN Top To Inlet Center |
| Brand | : | Jamesbury™ |
- Robust engineering design
- Self-relieving seat technology
- Manual operation
- Very long service life
- Bi-directional in hazardous media service
- Bubble-tight shut-off
