1/2 CS 90 PXFTG W/FKM 84875

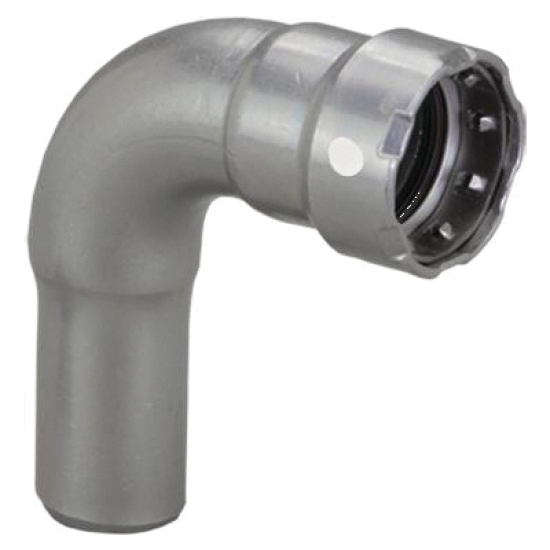

Viega MegaPress® Model 5916.1 84875 90 DEG Street Elbow, 1/2 IN, Carbon Steel, 200 PSI Max
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: MEGAPRESS FKM CS ELL 90 PXFTG 1/2
- MPN: 84875
- UPC: 691514848754
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Viega MegaPress FKM is the first and only clean, secure and efficient choice for joining 1/2 - 4 IN carbon steel pipe with an FKM sealing element. Meticulously engineered, it is suitable for renovations, repairs or installation on new carbon steel pipe systems. Viega MegaPress FKM can even be installed on non-combustible/flammable lines that are not completely shut down, eliminating the need to fully drain a system, and shortening repair and installation time. It is approved for use in hydronic heating, compressed air, fire protection, cooling water, marine applications and many more. Not approved for use with potable water.
Viega MegaPress® 90 DEG Street Elbow, 200 PSI Maximum Pressure, 1/2 IN Nominal, 14 - 284 DEG F, Series/Model: Model 5916.1, 90 DEG Street Elbow, Carbon Steel, Other Physical Dimensions: 2.24 X 2.56 IN Center To End, MegaPress®, 0.395 LB Weight, Industry Standards: ASTM F3226, IAPMO/ANSI/CAN Z1117
| Material | : | Carbon Steel |
| Nominal Size | : | 1/2 IN |
| Temperature Rating | : | 14 - 284 DEG F |
| Item Name | : | 90 DEG Street Elbow |
| Maximum Pressure | : | 200 PSI |
| Series/Model | : | Model 5916.1 |
| Other Physical Dimensions | : | 2.24 X 2.56 IN Center To End |
| Weight | : | 0.395 LB |
| Industry Standards | : | ASTM F3226, IAPMO/ANSI/CAN Z1117 |
| Sub Brand | : | MegaPress® |
- Smart connect technology
- For use with SCH 5 to SCH 40 carbon steel pipe
- Carbon steel, zinc-nickel coating
- Press connection, street
- FKM sealing elements, grip rings, separator rings
