1/2 CS 45 PXFTG W/FKM 84905

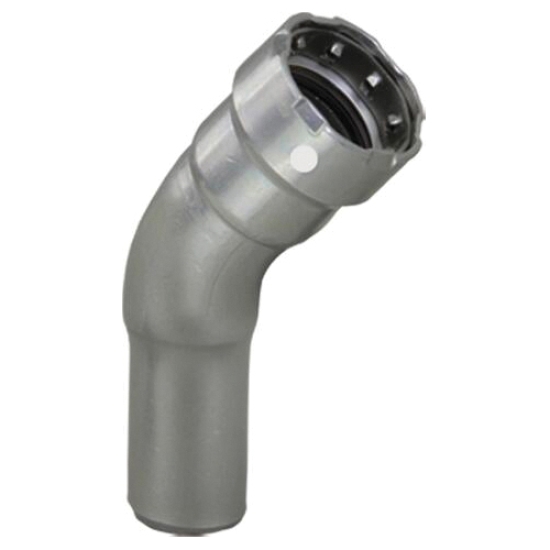

Viega MegaPress® Model 5926.1 84905 45 DEG Street Elbow, 1/2 IN, Carbon Steel, 200 PSI Max
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: MEGAPRESS FKM CS ELL 45 PXFTG 1/2
- MPN: 84905
- UPC: 691514849058
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Viega MegaPress FKM is the first and only clean, secure and efficient choice for joining 1/2 - 4 IN carbon steel pipe with an FKM sealing element. Meticulously engineered, it is suitable for renovations, repairs or installation on new carbon steel pipe systems. Viega MegaPress FKM can even be installed on non-combustible/flammable lines that are not completely shut down, eliminating the need to fully drain a system, and shortening repair and installation time. It is approved for use in hydronic heating, compressed air, fire protection, cooling water, marine applications and many more. Not approved for use with potable water.
Viega MegaPress® 45 DEG Street Elbow, 200 PSI Maximum Pressure, 1/2 IN Nominal, 14 - 284 DEG F, Series/Model: Model 5926.1, 45 DEG Street Elbow, Carbon Steel, Other Physical Dimensions: 1.67 X 1.97 IN Center To End, MegaPress®, 0.320 LB Weight, Industry Standards: ASTM F3226, IAPMO/ANSI/CAN Z1117
| Temperature Rating | : | 14 - 284 DEG F |
| Nominal Size | : | 1/2 IN |
| Material | : | Carbon Steel |
| Item Name | : | 45 DEG Street Elbow |
| Maximum Pressure | : | 200 PSI |
| Series/Model | : | Model 5926.1 |
| Other Physical Dimensions | : | 1.67 X 1.97 IN Center To End |
| Weight | : | 0.320 LB |
| Sub Brand | : | MegaPress® |
| Industry Standards | : | ASTM F3226, IAPMO/ANSI/CAN Z1117 |
- Smart connect technology
- For use with SCH 5 to SCH 40 carbon steel pipe
- Carbon steel, zinc-nickel coating
- Press connection, street
- FKM sealing elements, grip rings, separator rings
