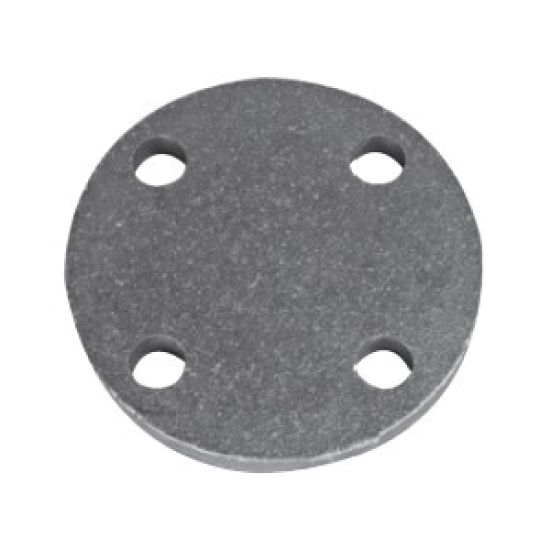

2x6 GALV BLIND FLANGE
WARD MFG 2X6.NBF Blind Flange, 2 IN, 6 IN OD, Class 125, 0.62 IN Thick, Cast Iron, Galvanized, 4 -Bolt
- Manufacturer: Ward Manufacturing
- Brand: WARD MFG
- MGPN: FLG GC BLD 2
- MPN: 2X6.NBF
- UPC: 66246744476
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Ward class 125 cast iron pipe fittings are made in accordance with ASME B16.4 with threads that meet the requirements of ASME B1.20.1. All Ward black class 125 cast iron pipe fittings with outlets ranging from 1/2 IN through 4 IN are air tested.
WARD MFG Blind Flange, Blind Flange, Pressure Class: Class 125, 2 IN Nominal, 6 IN Outside Diameter, 0.62 IN Thickness, 4-3/4 IN Bolt Circle Diameter, 4 Bolts, 3/4 IN Bolt Hole Diameter, Cast Iron, Material Standard: ASTM A126, ASTM A153, Finish/Color: Galvanized, 175 PSI Maximum Pressure, -20 To 150 DEG F, Industry Standards: ASME B16.1, ASME B1.20.1, 4.500 LB Weight
| Item Name | : | Blind Flange |
| Pressure Class | : | Class 125 |
| Nominal Size | : | 2 IN |
| Outside Diameter | : | 6 IN |
| Thickness | : | 0.62 IN |
| Bolt Circle Diameter | : | 4-3/4 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 3/4 IN |
| Material | : | Cast Iron |
| Material Standard | : | ASTM A126, ASTM A153 |
| Finish/Color | : | Galvanized |
| Maximum Pressure | : | 175 PSI |
| Temperature Rating | : | -20 To 150 DEG F |
| Industry Standards | : | ASME B16.1, ASME B1.20.1 |
| Weight | : | 4.500 LB |
- Wide range of products for sprinkler systems, drainage systems other installations
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-resistant coating
