3/4 PBV S5312-38-3600-GL-NC 316 SS THD

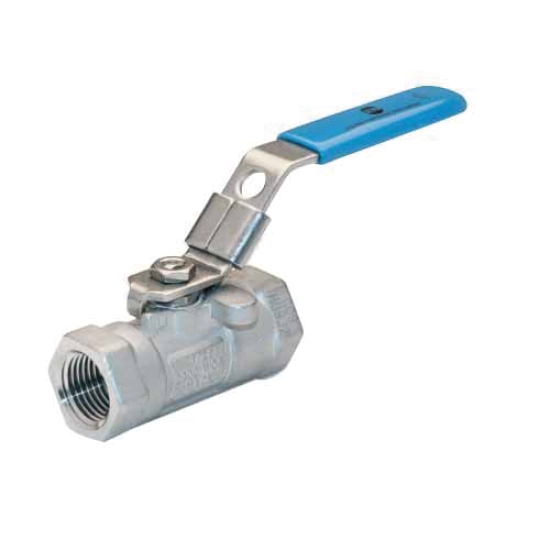

FET™ Series PBV/Model S5312-38-3600-GL-NC 185880 Ball Valve, 3/4 IN, FNPT, 250 PSI, Stainless Steel Body
- Manufacturer: Forum Energy Technologies, Inc
- Brand: FET™
- MGPN: VLV BA SS UB THRD FXF LL 3/4
- MPN: 185880
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
FET™ FET™ Ball Valve, Type: Floating, Fire Safe: Yes, FET™, Ball Valve, Series/Model: Series PBV/Model S5312-38-3600-GL-NC, 3/4 IN Nominal, Connection Type: FNPT, 250 PSI, Stainless Steel Body, Latch Locking Lever Handle Operator, Stainless Steel Stem, Stainless Steel Trim, Glass Filled PTFE Seat, Graphite/PTFE Seal, Material Standard: ASME B16.34, ASME/ANSI B1.20.1, Industry Standards: NACE Complaint, Other Physical Dimension: 2.83 IN Inlet To Outlet Length, 2.2 IN Top To Inlet Center, FET™
| Fire Safe | : | Yes |
| Brand Name | : | FET™ |
| Item Name | : | Ball Valve |
| Type | : | Floating |
| Series/Model | : | Series PBV/Model S5312-38-3600-GL-NC |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 250 PSI |
| Body Material | : | Stainless Steel |
| Operator Type | : | Latch Locking Lever Handle |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | Glass Filled PTFE |
| Seal Material | : | Graphite/PTFE |
| Material Standard | : | ASME B16.34, ASME/ANSI B1.20.1 |
| Industry Standards | : | NACE Complaint |
| Other Physical Dimension | : | 2.83 IN Inlet To Outlet Length, 2.2 IN Top To Inlet Center |
| Brand | : | FET™ |
- 250 PSI saturated steam rating
- Unibody construction
- Blowout-proof stem design
- Reinforced PTFE seats
- Fire safe to API-607 4th edition
