Viega MegaPress FKM is the first and only clean, secure and efficient choice for joining 1/2 - 4 IN carbon steel pipe with an FKM sealing element. Meticulously engineered, it is suitable for renovations, repairs or installation on new carbon steel pipe systems. Viega MegaPress FKM can even be installed on non-combustible/flammable lines that are not completely shut down, eliminating the need to fully drain a system, and shortening repair and installation time. It is approved for use in hydronic heating, compressed air, fire protection, cooling water, marine applications and many more. Not approved for use with potable water.

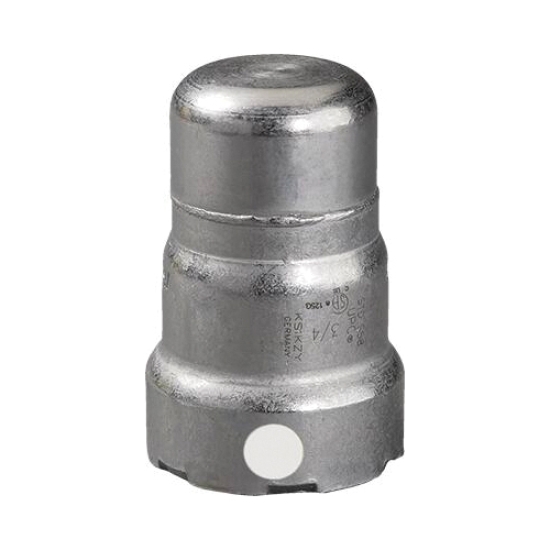

Viega MegaPress® Cap, 1/2 IN Nominal, Carbon Steel, Additional Specifications: Material Standard: ASTM A420, Finish/Color: Zinc-Nickel Coating, Suitable For Use With: SCH 5 To SCH 40 Carbon Steel Pipes, Includes: FKM Sealing Element, Grip Ring, Separator Ring, Length: 2.14 IN, Cap, 200 PSI Maximum Pressure, 0.207 LB Weight, Industry Standards: ASTM F3226, IAPMO/ANSI/CAN Z1117, Series/Model: Model 5956, MegaPress®, Connection Type: Press, 14 - 284 DEG F

• Smart connect technology
• For use with SCH 5 to SCH 40 carbon steel pipe
• Carbon steel, zinc-nickel coating
• Press connection
• FKM sealing elements, grip rings, separator rings

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075CUPPFD90LF_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/100CSMPS45_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MEGAPRESSFKMCSADPTPXFPT1_Spec.pdf
