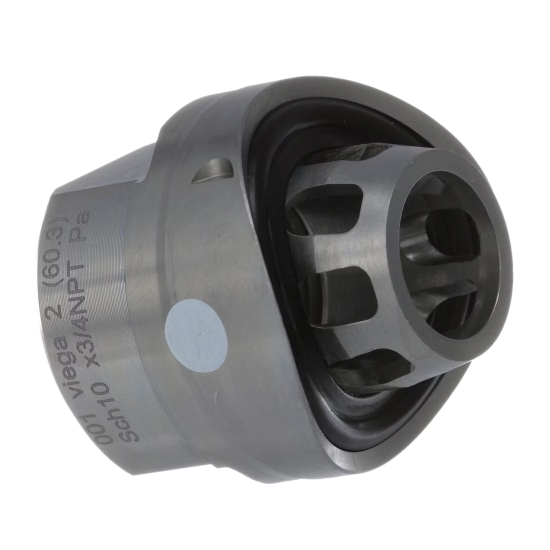

The MegaPress press-in branch connector is designed for SCH 10 carbon steel pipes. The pressing branch connector creates a 3/4 IN NPT threaded connection in accordance with ASME B1.20.1. It is particularly suitable where space is at a premium, e.g. in pipe manifold installation for sensors, thermometers or drains. The press-in branch connector is fitted with a sealing element made of FKM. The press-in branch connectors are marked with a white dot for FKM. The Viega MegaPress press-in branch connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work. The press fittings are installed with a battery-powered or corded pressing tool.

Viega MegaPress® Branch Connector, MegaPress®, Branch Connector, Series/Model: Model 4812.2, 1-1/2 X 3/4 IN Nominal, Connection Type: Press X FPT, Carbon Steel, Finish/Color: Zinc Nickel Coated, 1.69 IN Outside Diameter, 1.65 IN Length, 200 PSI Maximum Pressure, 284 DEG F, Industry Standards: ASME B1.20.1, Additional Specifications: Suitable For Use With: 10 Carbon Steel Pipes, Includes: FKM Sealing Element, 0.454 LB Weight

• For use with SCH 10 carbon steel pipe only
• Carbon steel, zinc-nickel coating
• Press connection, female pipe thread
• FKM sealing element

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075CUPPFD90LF_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MEGAPRESSCSBRCONNS10PXFPT112X34_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MEGAPRESSCSBRCONNS10PXFPT112X34_Spec.pdf
