Viega MegaPress is the first clean, secure and efficient choice for joining carbon steel pipe. It is suitable for renovations, repairs or installation of new carbon steel pipe systems. Viega MegaPress can even be installed on non-combustible/flammable lines that are not completely shut down, eliminating the need to fully drain a system, and shortening repair and installation time. It is approved for use in hydronic heating, compressed air, fire protection, cooling water, marine applications and many more. Not approved for use with potable water or in fuel gas and oil applications.

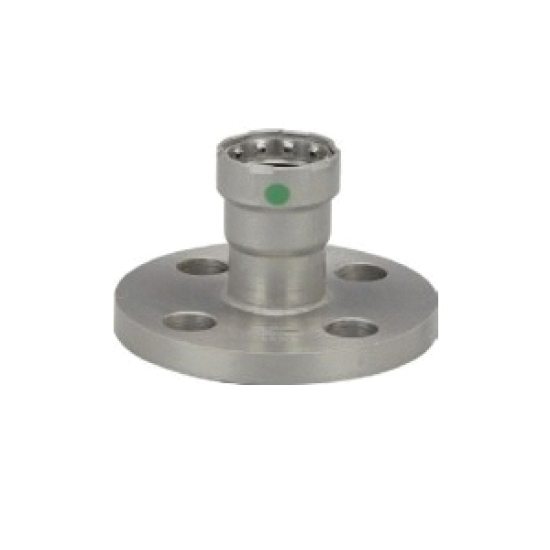

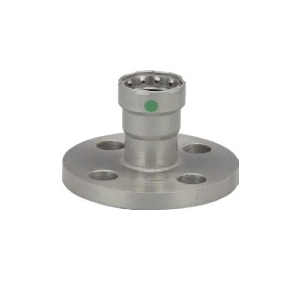

Viega MegaPress® Adapter Flange, MegaPress®, Adapter Flange, Series/Model: Model 4859.5, Pressure Class: Class 150, 1 IN Nominal, 4.33 IN Flange Outside Diameter, Connection Type: Press, 0.58 IN Flange Thickness, 3-1/8 IN Bolt Circle Diameter, 4 Bolts, 2.96 IN Length, Carbon Steel, Material Standard: ASTM A420, Finish/Color: Zinc Nickel Coated, 200 PSI Maximum Pressure, 0 - 250 DEG F, Industry Standards: ASTM F3226, IAPMO/ANSI/CAN Z1117, Additional Specifications: Suitable For Use With: SCH 5 To SCH 40 Carbon Steel Pipes, Includes: EPDM Sealing Element, 2.070 LB Weight

• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/100CSMPS45_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MEGAPRESSCSFLG1_Spec.pdf
