2-1/2x1-1/2 VIC 929 THRD

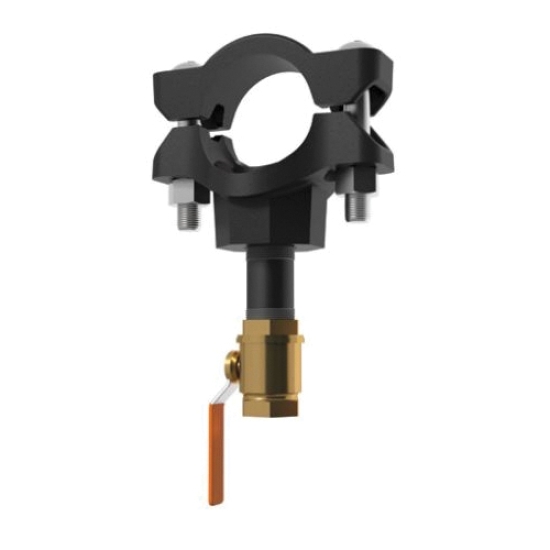

Victaulic Style 929 CC0392NPEA Isolation Outlet With Grade E Gasket, 2-1/2 X 1-1/2 IN, Threaded, SCH 40, Ductile Iron
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC CROSS 929 2-1/2X1-1/2
- MPN: CC0392NPEA
- UPC: 688304292293
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Isolation Outlet With Grade E Gasket, Isolation Outlet With Grade E Gasket, Series/Model: Style 929, 2-1/2 X 1-1/2 IN Nominal, Connection Type: Threaded, SCH 40, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Black Enamel, 14.69 IN Length, 500 PSI Maximum Pressure, -30 To 230 DEG F, Other Physical Dimension: 9-1/4 IN Center To End, 5.63 IN Width
| Item Name | : | Isolation Outlet With Grade E Gasket |
| Series/Model | : | Style 929 |
| Nominal Size | : | 2-1/2 X 1-1/2 IN |
| Connection Type | : | Threaded |
| Schedule | : | SCH 40 |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Black Enamel |
| Length | : | 14.69 IN |
| Maximum Pressure | : | 500 PSI |
| Temperature Rating | : | -30 To 230 DEG F |
| Other Physical Dimension | : | 9-1/4 IN Center To End, 5.63 IN Width |
- Provides a direct branch connection at any location where a hole can be cut in the pipe
- For use on carbon steel, stainless steel and copper tubing
