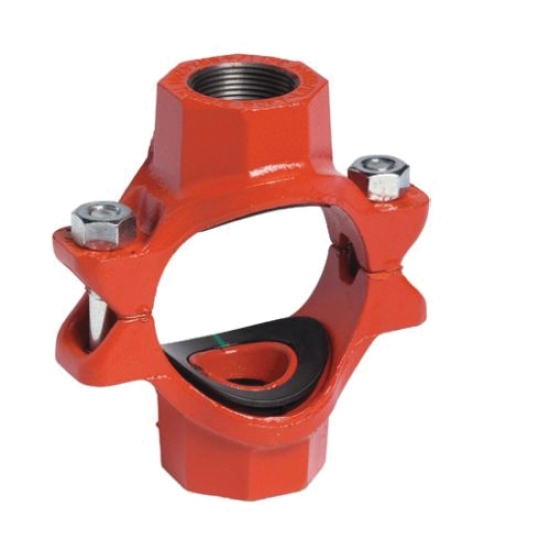

Victaulic Mechanical-T® Bolted Branch Outlet Cross With Grade E Gasket, Mechanical-T®, Bolted Branch Outlet Cross With Grade E Gasket, Series/Model: Style 920, 6 X 6 X 2-1/2 X 2-1/2 IN Nominal, Connection Type: FNPT, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Coated, 6-5/8 X 6-5/8 X 2-7/8 X 2-7/8 IN Outside Diameter, 10.51 IN Length, 500 PSI Maximum Pressure, -30 To 230 DEG F, Industry Standards: cULus Listed, VDS Compliant, CNBOP-PIB, LPCB, FM Approved, CE EN 10311 CPR (EU) No 305/2011, Other Physical Dimension: 4.63 IN Width, 2-3/4 IN Hole Diameter, 4.01 IN Center Of Run To Engaged Pipe End, 5.13 IN Center Of Run To End Of Fitting, 14.000 LB Weight

• Provides a direct branch connection at any location where a hole can be cut in the pipe
• Pressures up to 500 PSI/3447 KPA/34 BAR

• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/1200600G30RL_Inst.pdf
• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/400125P920FMTCR_Broc.pdf
