1 250# GALV MI BRZ/IRON

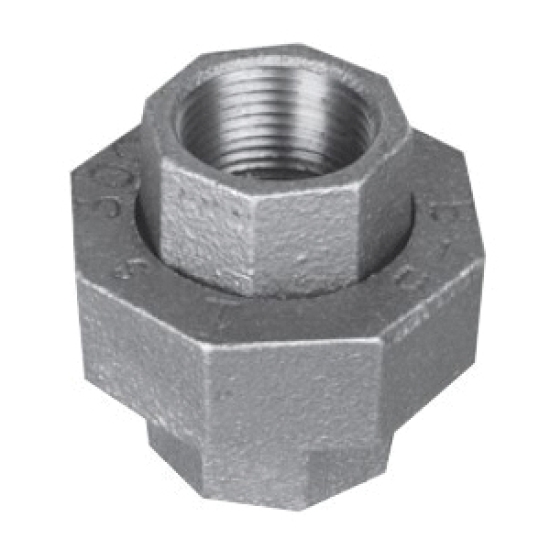

WARD MFG 1.N250U Brass To Iron Seat Union, 1 IN, Class 250, Malleable Iron, Galvanized
- Manufacturer: Ward Manufacturing
- Brand: WARD MFG
- MGPN: UNION GM 250 1
- MPN: 1.N250U
- UPC: 66246743588
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Ward class 150, 250, and 300 unions are made in accordance with ASME B16.39 with threads that meet the requirements of ASME B1.20.1.
WARD MFG Brass To Iron Seat Union, Brass To Iron Seat Union, Pressure Class: Class 250, 1 IN Nominal, Malleable Iron, Material Standard: ASTM A197, ASTM A153, Finish/Color: Galvanized, 2.31 IN Length, 500 PSI Maximum Pressure, -20 To 150 DEG F, Industry Standards: ASME B16.39, ASME B1.20.1, Other Physical Dimension: 3/4 IN Thread Length, 0.95 IN Thru Hole, 2.07 IN Nut Width, 1.200 LB Weight
| Item Name | : | Brass To Iron Seat Union |
| Pressure Class | : | Class 250 |
| Nominal Size | : | 1 IN |
| Material | : | Malleable Iron |
| Material Standard | : | ASTM A197, ASTM A153 |
| Finish/Color | : | Galvanized |
| Length | : | 2.31 IN |
| Maximum Pressure | : | 500 PSI |
| Temperature Rating | : | -20 To 150 DEG F |
| Industry Standards | : | ASME B16.39, ASME B1.20.1 |
| Other Physical Dimension | : | 3/4 IN Thread Length, 0.95 IN Thru Hole, 2.07 IN Nut Width |
| Weight | : | 1.200 LB |
- Wide range of products for sprinkler systems, drainage systems other installations
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-resistant coating
