ROTO HAMMER 1/0 CHAIN LINK

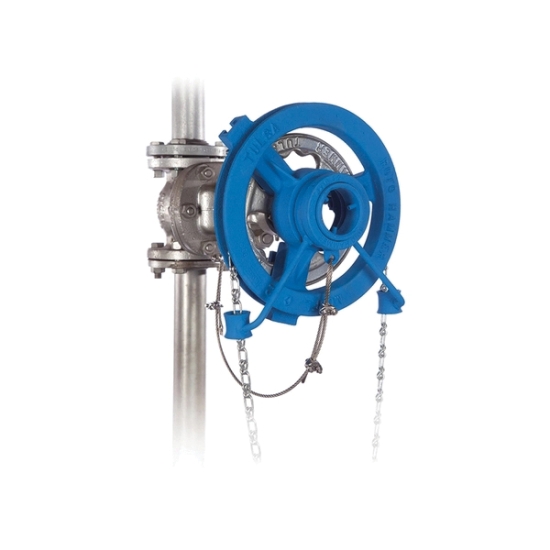

Rotork® C Series CHAIN LINK 1/0 Clamp On Chain Wheel, 13 IN H, Ductile Iron
- Manufacturer: Rotork
- Brand: Rotork®
- MGPN: ROTO 1/0 RL ROTO-LINK
- MPN: CHAIN LINK 1/0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
C Series chainwheels are highly robust and ideal for the heaviest of industrial applications and corrosive environments. Perfect for valves that need to withstand especially heavy use.
Rotork® Clamp On Chain Wheel, 13 IN Height, Item Name: Clamp On Chain Wheel, Ductile Iron, Other Physical Dimension: 4-1/2 IN Inner Slot Diameter, 13 IN Outer Slot Diameter, 2.62 IN Hub Opening, 1/2 IN Slot Width, 4 IN Rear Opening, 1.19 IN Rim Thickness, 4.31 IN Depth, Series/Model: C Series, #1/0, Additional Specifications: Hand Wheel Outside Diameter: 10 - 12-3/4 IN
| Additional Specifications | : | Hand Wheel Outside Diameter: 10 - 12-3/4 IN |
| Height | : | 13 IN |
| Item Name | : | Clamp On Chain Wheel |
| Material | : | Ductile Iron |
| Other Physical Dimension | : | 4-1/2 IN Inner Slot Diameter, 13 IN Outer Slot Diameter, 2.62 IN Hub Opening, 1/2 IN Slot Width, 4 IN Rear Opening, 1.19 IN Rim Thickness, 4.31 IN Depth |
| Series/Model | : | C Series |
| Size | : | #1/0 |
- Ductile iron clamp-on chain sprocket fits hand wheel sizes from 152 to 1016 MM (6 to 40 IN) in diameter
- Clamps onto existing hand wheel for safe and effective manual valve operation
- All units come complete with sprocket wheel, chain guide, set collar, zinc plated hardware and installation instructions
Installation Instruction Name
