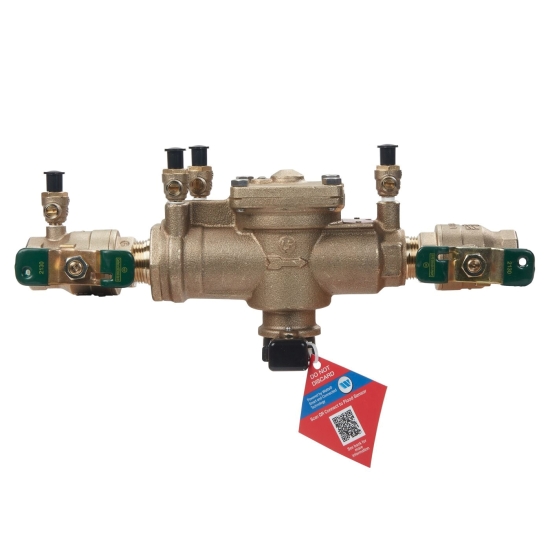

This 1 IN lead-free copper silicon alloy reduced pressure zone backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead-free body, 1 inch NPT end connections, quarter-turn ball valve shut-offs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly includes flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications.

Watts Reduced Pressure Zone Backflow Preventer Assembly, Item Name: Reduced Pressure Zone Backflow Preventer Assembly, Series/Model: LF009, 1 X 1 IN Nominal, FNPT X FNPT Connection, 175 PSI, 33 - 180 DEG F, Copper Silicone Alloy Body, Plastic Seat, Industry Standards: Approved by the Foundation for Cross-Connection Control And Hydraulic Research at the University of Southern California, ASSE Number 1013, AWWA C511, BAA Compliant, CSA B64.4 Certified, IAPMO File Number 1563, USC Listed, UPC Approved, 18-1/4 IN Width, 6-1/4 IN Height, Lead Free: Yes, Additional Specifications: Handle Type: Tee, Body Pattern: Inline, Disc Material: Silicone, 12.000 LB Weight

• Features flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Quarter-turn full port resilient seated ball valve shut-offs
• Single access cover and modular check construction for the ease of maintenance
• Internal relief valve for reduced installation clearances
• Replaceable seats for an economical repair
• Test cocks are screwdriver slotted

• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF009M2QT1_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/WATTSLF009M2QT1_Spec.pdf
