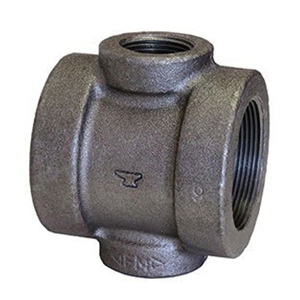

WARD MFG 1BX1.BCCR Pipe Reducing Cross, 1-1/4 X 1-1/4 X 1 X 1 IN, FNPT, Cast Iron, Black, Class 125
WARD MFG Pipe Reducing Cross, Item Name: Pipe Reducing Cross, Pressure Class: Class 125, 1-1/4 X 1-1/4 X 1 X 1 IN Nominal, FNPT Connection, Cast Iron, Material Standard: ASME B16.4, Finish/Color: Black, 175 PSI Maximum Pressure, -20 - 150 DEG F, Industry Standards: ASME B1.20.1, Domestic/Import: Domestic
Item Name | : | Pipe Reducing Cross |
Pressure Class | : | Class 125 |
Nominal Size | : | 1-1/4 X 1-1/4 X 1 X 1 IN |
Connection Type | : | FNPT |
Schedule | : | STD |
Material | : | Cast Iron |
Material Standard | : | ASME B16.4 |
Finish/Color | : | Black |
Maximum Pressure | : | 175 PSI |
Temperature Rating | : | -20 - 150 DEG F |
Industry Standards | : | ASME B1.20.1 |
Domestic/Import | : | Domestic |
The iron from which Class 125 cast iron fittings are made is held to strict formula by careful chemical analysis and control. Tapping is done on the most modern machines. All tappings are to USA Standards for iron pipe threads. Straightness and correct depth of threads is assured through continuous capable inspection, by careful trained inspectors. Because of the close attention paid to formula control and the use of modern precision equipment we are able to produce castings of rugged strength and the ability to make a water tight seal.
