1/2 TITAN YS82 CS SW WYE STRAINER B1SW

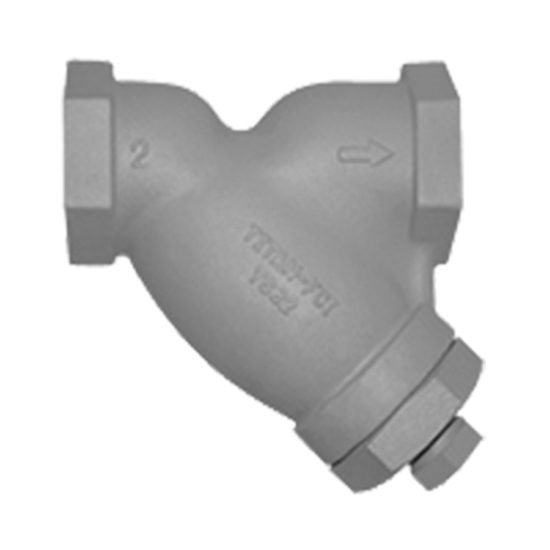

Titan Model YS82-CS YS82C0050 Y-Strainer, 1/2 IN Nominal, Socket, Class 600, Carbon Steel
- Manufacturer: Titan Flow Control Inc
- Brand: Titan
- MGPN: 050YS82CSYS
- MPN: YS82C0050
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Titan Y-Strainer, Item Name: Y-Strainer, Series/Model: Model YS82-CS, 1/2 IN Nominal, Socket Connection, Blow-Off Port Size: 1/4 IN, Pressure Class: Class 600, 1480 PSI, Carbon Steel Body, Material Standard: ASTM A216, Finish/Color: Epoxy Painted, Industry Standards: ASME B1.20.1, ASME B16.11, ASME B16.34, 100 DEG F, 2.93 IN Length
| Item Name | : | Y-Strainer |
| Series/Model | : | Model YS82-CS |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Socket |
| Blow-Off Port Size | : | 1/4 IN |
| Pressure Class | : | Class 600 |
| Pressure Rating | : | 1480 PSI |
| Body Material | : | Carbon Steel |
| Material Standard | : | ASTM A216 |
| Finish/Color | : | Epoxy Painted |
| Industry Standards | : | ASME B1.20.1, ASME B16.11, ASME B16.34 |
| Temperature Rating | : | 100 DEG F |
| Length | : | 2.93 IN |
- Rugged - high-quality design
- Large straining capacity
- Precision machined seats
- Self-cleaning capability
Installation Instruction Name
