1-1/2 NIBCO T580-70-66 BRZ THRD BALL VLV

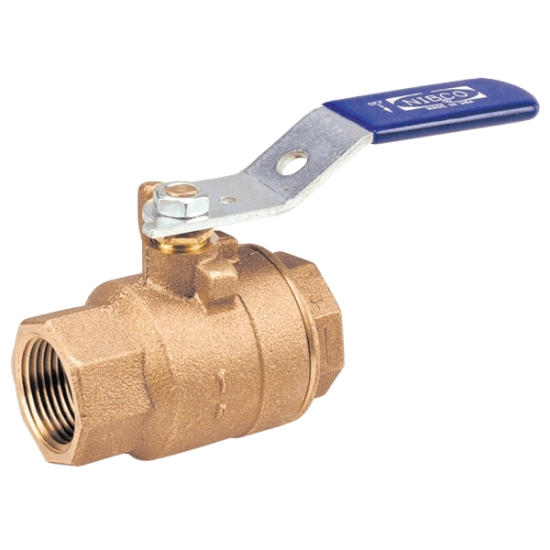

NIBCO Model T-580-70-66 NL95H0C Ball Valve, 1-1/2 IN, FNPT, Bronze, 600 PSI
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: 150T5807066BV
- MPN: NL95H0C
- UPC: 039923676818
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO bronze ball valve provides bubble tight shut-off at 600 PSI. The valve features a reinforced PTFE seat ring and stainless steel stem and ball with high chemical-resistance properties and is recommended for many high pressure applications. The two-piece valve features NPT end connections for easy installation.
NIBCO Ball Valve, Type: 2-Piece, Quarter-Turn, Brand Name: NIBCO, Item Name: Ball Valve, Series/Model: Model T-580-70-66, 1-1/2 IN Nominal, FNPT Connection, 600 PSI, 400 DEG F, Bronze Body, Standard Lever Handle Operator, Zinc-Plated Steel Handle, Stainless Steel Stem, Stainless Steel Trim, PTFE Packing, Brass Gland, Reinforced PTFE Seat, Material Standard: Body: ASTM B584, Ball: ASTM A276, Stem: ASTM A276, Industry Standards: MSS SP-110, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Other Physical Dimension: 4.31 IN Inlet to Outlet Length, 3 IN Top to Inlet Center
| Brand Name | : | NIBCO |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Quarter-Turn |
| Series/Model | : | Model T-580-70-66 |
| Nominal Size | : | 1-1/2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 600 PSI |
| Temperature Rating | : | 400 DEG F |
| Body Material | : | Bronze |
| Operator Type | : | Standard Lever Handle |
| Handle Material | : | Zinc-Plated Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Packing Material | : | PTFE |
| Gland Material | : | Brass |
| Seat Material | : | Reinforced PTFE |
| Material Standard | : | Body: ASTM B584, Ball: ASTM A276, Stem: ASTM A276 |
| Industry Standards | : | MSS SP-110, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Other Physical Dimension | : | 4.31 IN Inlet to Outlet Length, 3 IN Top to Inlet Center |
- Conventional port
- Stainless steel ball and stem
- Blowout-proof stem
- Vented ball
- Threaded end connections
- Dezincification-resistant
