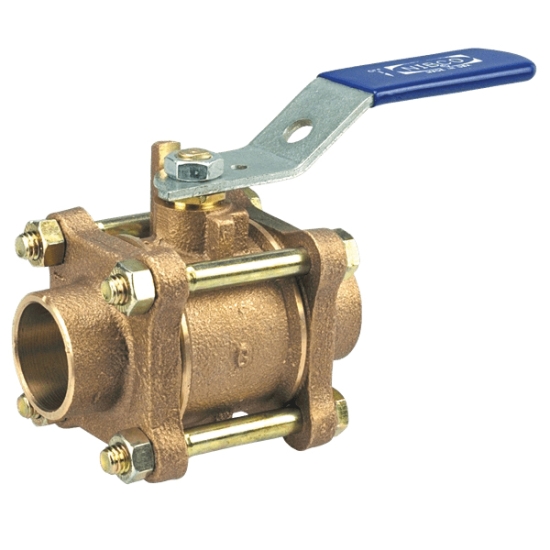

The NIBCO bronze ball valve provides bubble tight shut-off at 600 PSI. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. The PTFE seat ring and stainless steel stem and ball exhibit high chemical-resistance properties and is recommended for many high pressure applications. It may be used for isolation and throttling (half open to full open only). The valve is repairable in-line.

NIBCO Ball Valve, Type: 3-Piece, Full Port, Item Name: Ball Valve, Series/Model: Model S-595-Y-66, 1/2 IN Nominal, Solder Connection, 600 PSI, 400 DEG F, Bronze Body, Standard Lever Handle Operator, Zinc-Plated Steel Handle, Stainless Steel Stem, 316 Stainless Steel Trim, PTFE Packing, Brass Gland, PTFE Seat, Fluorocarbon Rubber Seal, Material Standard: Body: ASTM B584, Stem: ASTM A276, Industry Standards: MSS SP-110, PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Other Physical Dimension: 2.06 IN Inlet to Outlet Length, 1.69 IN Top to Inlet Center

• Stainless steel ball and stem
• Blowout-proof stem
• Vented ball
• Standard lever handle or locking lever
• Solder end connections
• Dezincification-resistant

• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/NJ93H06_Spec.pdf
