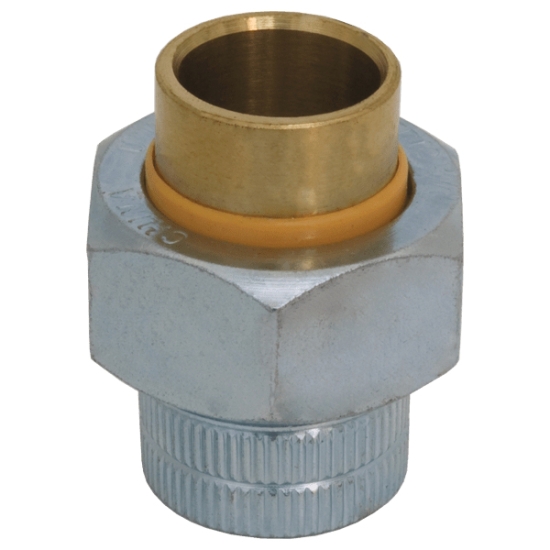

WEBSTONE 1/2 PRS X FIP DIELECTRIC UNION
Webstone Model H-x110 H-81102W Dielectric Union, 1/2 X 1/2 IN, Press X FIP, Steel and Brass, Galvanized
- Manufacturer: NIBCO
- Brand: Webstone
- MGPN: WEBH-81102W
- MPN: H-81102W
- UPC: 018394020702
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Webstone Dielectric Union, Item Name: Dielectric Union, Series/Model: Model H-x110, 1/2 X 1/2 IN Nominal, Press X FIP Connection, Steel and Brass, Finish/Color: Galvanized, 2.52 IN Length, 250 PSI Maximum Pressure, 180 DEG F, Industry Standards: NSF/ANSI 61 & 372 - PS117, ASSE 1079, cUPC, Additional Specifications: With Nylon Insulator Ring
| Item Name | : | Dielectric Union |
| Series/Model | : | Model H-x110 |
| Nominal Size | : | 1/2 X 1/2 IN |
| Connection Type | : | Press X FIP |
| Material | : | Steel and Brass |
| Finish/Color | : | Galvanized |
| Length | : | 2.52 IN |
| Maximum Pressure | : | 250 PSI |
| Temperature Rating | : | 180 DEG F |
| Industry Standards | : | NSF/ANSI 61 & 372 - PS117, ASSE 1079, cUPC |
| Additional Specifications | : | With Nylon Insulator Ring |
- Avoids corrosion caused by electrolysis while transitioning between different piping materials
Installation Instruction Name
