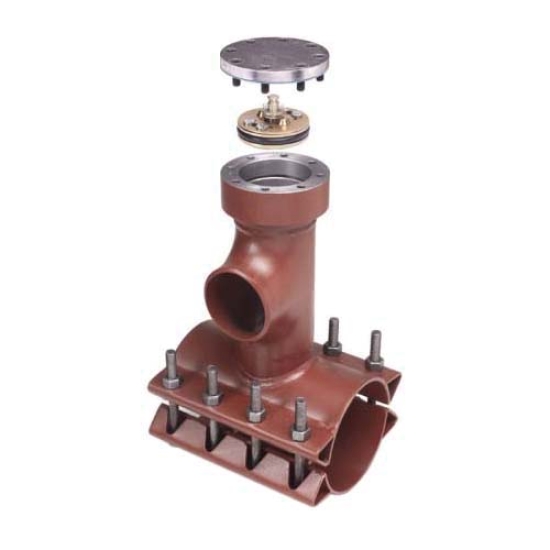

TDW's bolt-on 3-way tee is designed for use with TDW tapping and Shortstopp® plugging machine systems. It is used for main relocations, equipment tie-ins, lateral connections, line extensions, crossovers, temporary or permanent bypass, eliminating the need for a valve on the connection and making repairs, all without shutdown. The design of the 4 through 12 IN Type IIA 3-way tee requires a reusable bolt-on flange adapter, which adapts the tee to TDW Shortcutt® and Shortstopp® valves. These tees come complete including the top half, bottom half, bolts, nuts, O-ring seals, gaskets, completion plug and blind flange or cap.

TDW 3-Way Tee, Type: Top Seal, Type IIA, Sub Brand: Shortstopp®, Item Name: 3-Way Tee, 6 X 4 IN Nominal, Flanged Connection, Steel, Material Standard: ASTM A106 Grade B, ASTM A234 Grade WPB, Finish/Color: Epoxy-Coated, 60 PSIG Maximum Pressure, 150 DEG F, Industry Standards: ASME B31.8, Other Physical Dimension: 9.44 IN Height, 12 IN Width, 6.14 IN Width to Outlet, Additional Specifications: Stainless Steel Hardware, Schedule 40 X 12 IN Transition by JCM, 63 LB Weight

• TDW's bolt-on top seal and end seal tees can be used on a variety of pipe materials including steel, ductile iron and cast iron
• They have a broad range of nominal pipe sizes and can allow for broad variances in actual outside diameters
• All tees are designed to ASME B31.8 standards
