1/2 MEGAPRESS CS BALL VLV P x P 28500

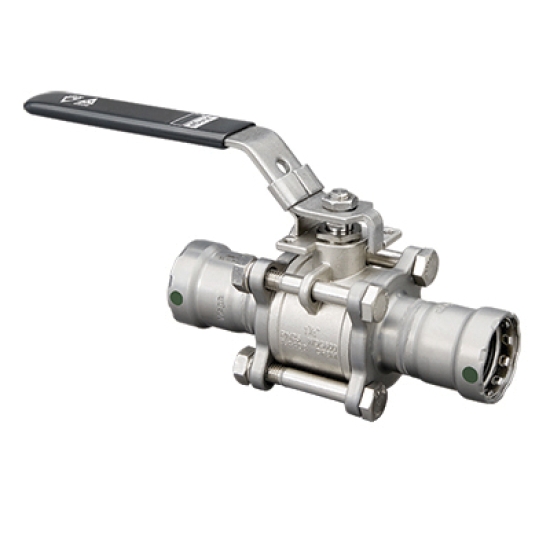

Viega MegaPress® 4875.8 28500 Ball Valve, 1/2 IN, Press X Press, 316 Stainless Steel, 250 PSI
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: MEGAPRESS CS VLV BA PXP 1/2
- MPN: 28500
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Viega MegaPress® 4875.8 3-Piece Ball Valve, 1/2 IN Nominal, Press X Press Connection, 250 PSI, 0 - 250 DEG F, 316 Stainless Steel Body, Locking Metal Handle Operator, 304 Stainless Steel Handle, 316 Stainless Steel Stem, RPTFE Seat, EPDM Seal, Industry Standards: ASME B31, MSS-SP110, IAPMO Z1157 Certified, Other Physical Dimension: 5.6 IN Inlet To Outlet Length, 2.85 IN Top To Inlet Center
| Sub Brand | : | MegaPress® |
| Item Name | : | Ball Valve |
| Type | : | 3-Piece |
| Series/Model | : | 4875.8 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Press X Press |
| Pressure Rating | : | 250 PSI |
| Temperature Rating | : | 0 - 250 DEG F |
| Body Material | : | 316 Stainless Steel |
| Operator Type | : | Locking Metal Handle |
| Handle Material | : | 304 Stainless Steel |
| Stem Material | : | 316 Stainless Steel |
| Seat Material | : | RPTFE |
| Seal Material | : | EPDM |
| Industry Standards | : | ASME B31, MSS-SP110, IAPMO Z1157 Certified |
| Other Physical Dimension | : | 5.6 IN Inlet To Outlet Length, 2.85 IN Top To Inlet Center |
- 316 stainless steel valve/carbon steel press ends
- EPDM sealing elements, 304 locking handle
