3 7150-31-3600XTZ2C BALL VLV

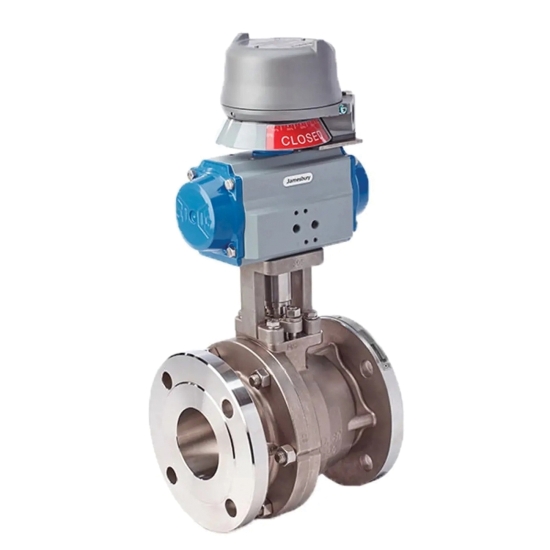

Jamesbury™ 7150 MA0161318 Ball Valve, 3 IN, Flanged, Stainless Steel, 170 - 425 PSI
- Manufacturer: Valmet
- Brand: Jamesbury™
- MGPN: J 7150-31-3600XTZ2C 3
- MPN: MA0161318
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Jamesbury™ polymer seated flanged ball valves provide industry leading performance and reliability. Offered in a wide variety of materials to suit an extensive range of applications these valves are designed and manufactured with all our latest technology and expertise.
Jamesbury™ 7150 Fire-Tite Non-Trunnion Reduced Bore Standard Port Ball Valve, 3 IN Nominal, Flanged Connection, 170 - 425 PSI, Pressure Class: Class 150, -20 - 500 DEG F, 2.31 IN Opening, Stainless Steel Body, Stainless Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Fluoropolymer Seat, TFM Seal, Material Standard: ASTM A351 Type CF8M, Other Physical Dimension: 8 IN Inlet To Outlet Length, 5.51 IN Top To Inlet Center
| Item Name | : | Ball Valve |
| Type | : | Fire-Tite, Non-Trunnion, Reduced Bore, Standard Port |
| Series/Model | : | 7150 |
| Nominal Size | : | 3 IN |
| Connection Type | : | Flanged |
| Pressure Rating | : | 170 - 425 PSI |
| Pressure Class | : | Class 150 |
| Temperature Rating | : | -20 - 500 DEG F |
| Opening Size | : | 2.31 IN |
| Body Material | : | Stainless Steel |
| Handle Material | : | Stainless Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | Fluoropolymer |
| Seal Material | : | TFM |
| Material Standard | : | ASTM A351 Type CF8M |
| Other Physical Dimension | : | 8 IN Inlet To Outlet Length, 5.51 IN Top To Inlet Center |
- Robust engineering design
- Self-relieving seat technology
- Low emissions stem seal technology
- Very long service life
- Bi-directional in hazardous media service
- Low fugitive emissions
- Bubble tight shut-off
- Automatable
