3/8 JAMESBURY THD 3000

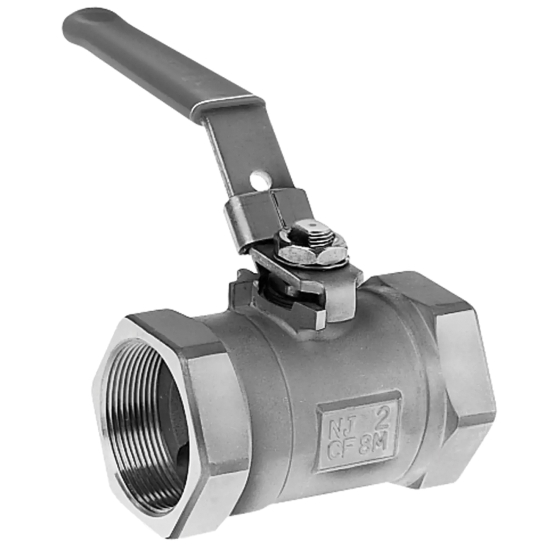

Jamesbury™ Value-Line™ 3000 MA0010767 Ball Valve, 3/8 IN, Threaded, Carbon Steel, 2000 PSI
- Manufacturer: Valmet
- Brand: Jamesbury™
- MGPN: J 33-2236ML 3/8
- MPN: MA0010767
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Jamesbury™ Series 3000 ball valves are perfect for applications where positive, long-lasting shut-off is required. Ideal for vent, by-pass, sampling and gauge locations, these valves provide cost effective shut-off in a wide range of process industry, manufacturing, commercial and OEM services. The double reduced design eliminates the insert joint, allowing a single-piece body.
Jamesbury™ Value-Line™ 3000 2-Piece Ball Valve, 3/8 IN Nominal, Threaded Connection, 2000 PSI, 500 DEG F, 0.31 IN Opening, Carbon Steel Body, Locking Lever Handle Operator, Stainless Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Filled PTFE Seat, Graphite Seal, 1.1 IN Width, Other Physical Dimension: 2.8 IN Inlet To Outlet Length, 1.97 IN Top To Inlet Center
| Sub Brand | : | Value-Line™ |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece |
| Series/Model | : | 3000 |
| Nominal Size | : | 3/8 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 2000 PSI |
| Temperature Rating | : | 500 DEG F |
| Opening Size | : | 0.31 IN |
| Body Material | : | Carbon Steel |
| Operator Type | : | Locking Lever Handle |
| Handle Material | : | Stainless Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | Filled PTFE |
| Seal Material | : | Graphite |
| Width | : | 1.1 IN |
| Other Physical Dimension | : | 2.8 IN Inlet To Outlet Length, 1.97 IN Top To Inlet Center |
- Robust engineering design
- Long service life
- Bubble tight shut-off
